Overview
The ADC081C027CIMK/NOPB is a low-power, 8-bit analog-to-digital converter (ADC) produced by Texas Instruments. This monolithic ADC operates from a single supply voltage ranging from 2.7V to 5.5V and is based on a successive approximation register (SAR) architecture. It features an internal track-and-hold circuit capable of handling input frequencies up to 11MHz. The device is designed for use in battery-operated equipment due to its low power consumption and small package size.
Key Specifications
| Parameter | Description |
|---|---|
| Resolution | 8 bits; No Missing Codes |
| Conversion Time | 1 µs (Typ) |
| INL & DNL | ±0.2 LSB (Max) |
| Throughput Rate | 188.9 ksps (Max) |
| Power Consumption (at 22ksps) | 3V Supply: 0.26 mW (Typ), 5V Supply: 0.78 mW (Typ) |
| Operating Temperature Range | -40°C to 105°C |

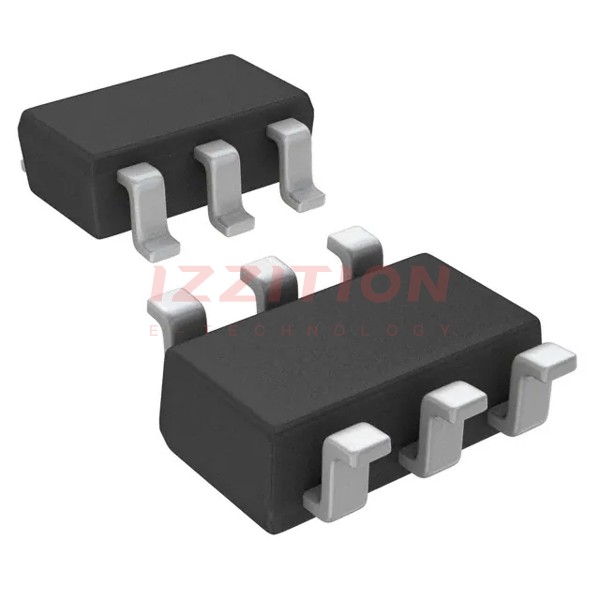

| Package | TSOT-23-6L |
| Supply Voltage | 2.7V to 5.5V |
| Interface | I2C-Compatible 2-Wire Interface (Standard, Fast, High Speed modes) |
Key Features
- I2C-Compatible 2-Wire Interface supporting Standard (100kHz), Fast (400kHz), and High Speed (3.4MHz) modes
- Extended Power Supply Range (+2.7V to +5.5V)
- Out-of-Range Alert Function
- Automatic Power-Down Mode while not converting
- Very Small SOT-6 and VSSOP-8 Packages
- ±8kV HBM ESD Protection (SDA, SCL)
- Pin-Selectable Chip Addresses (up to three addresses for SOT-6 package)
Applications
The ADC081C027CIMK/NOPB is suitable for a variety of applications, particularly those requiring low power consumption and compact design. These include:
- Battery-operated equipment such as portable medical devices, handheld instruments, and wireless sensors.
- Industrial automation and control systems where space and power efficiency are critical.
- Consumer electronics like smart home devices, wearables, and IoT applications.
- Automotive systems where reliability and compactness are essential.
Q & A
- What is the resolution of the ADC081C027CIMK/NOPB?
The resolution of the ADC081C027CIMK/NOPB is 8 bits with no missing codes.
- What is the operating voltage range of the ADC081C027CIMK/NOPB?
The operating voltage range is from 2.7V to 5.5V.
- What type of interface does the ADC081C027CIMK/NOPB use?
The device uses an I2C-Compatible 2-Wire Interface supporting Standard, Fast, and High Speed modes.
- What is the maximum throughput rate of the ADC081C027CIMK/NOPB?
The maximum throughput rate is 188.9 ksps.
- What is the power consumption of the ADC081C027CIMK/NOPB at 22ksps?
The power consumption is 0.26 mW (Typ) at 3V supply and 0.78 mW (Typ) at 5V supply.
- What is the operating temperature range of the ADC081C027CIMK/NOPB?
The operating temperature range is from -40°C to 105°C.
- What package types are available for the ADC081C027CIMK/NOPB?
The device is available in a TSOT-23-6L package.
- Does the ADC081C027CIMK/NOPB have any ESD protection features?
Yes, it has ±8kV HBM ESD protection on the SDA and SCL pins.
- What is the purpose of the Out-of-Range Alert Function in the ADC081C027CIMK/NOPB?
The Out-of-Range Alert Function provides an interrupt when the analog input violates a programmable upper or lower limit value.
- How does the automatic power-down mode work in the ADC081C027CIMK/NOPB?
The device automatically enters a power-down mode when not converting, reducing power consumption to less than 1µW.
