Overview
The ADC081C021CIMK/NOPB is a high-performance, 8-bit analog-to-digital converter (ADC) produced by Texas Instruments. This compact and efficient ADC is designed for applications requiring precise and reliable analog signal conversion. It features a single-channel input and operates with a low power consumption, making it ideal for battery-powered devices and portable electronics. The ADC081C021CIMK/NOPB is positioned as a cost-effective solution for applications in consumer electronics, industrial automation, and sensor interfacing. Its unique selling points include its small form factor, ease of integration, and high accuracy, making it a competitive choice in the ADC market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 8 | bits | - |
| Input Channels | 1 | - | Single-channel |
| Conversion Rate | 188.9 | kSPS | Samples per second |
| Supply Voltage | 2.7 to 5.5 | V | - |
| Power Consumption | 0.5 | mW | Typical at 3.3V |
| Interface | I2C | - | Compatible with standard I2C protocols |
| Operating Temperature | -40 to +125 | °C | - |

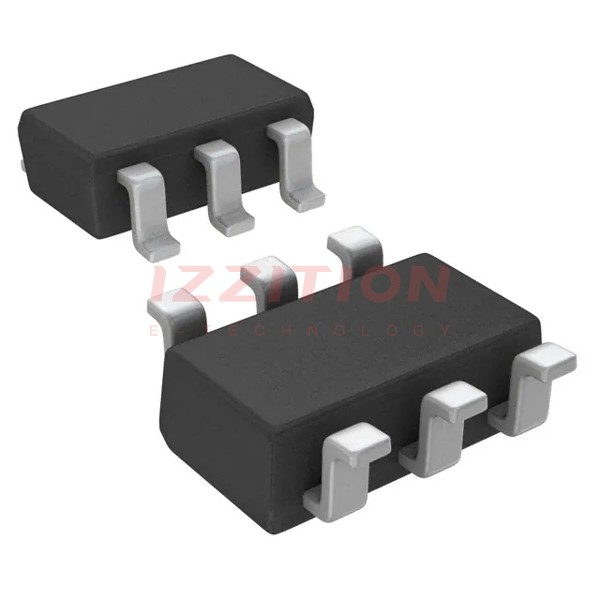

| Package | SOT-23-6 | - | Compact form factor |
Key Features
- High Accuracy: Provides 8-bit resolution for precise analog-to-digital conversion.
- Low Power Consumption: Ideal for battery-powered and portable devices.
- Compact Design: SOT-23-6 package enables integration into space-constrained applications.
- I2C Interface: Simplifies communication with microcontrollers and other digital systems.
- Wide Supply Voltage Range: Operates from 2.7V to 5.5V, offering flexibility in various applications.
Applications
The ADC081C021CIMK/NOPB is widely used in applications requiring accurate analog signal conversion. Its compact size and low power consumption make it suitable for portable electronics such as handheld devices and wearable technology. In industrial automation, it is employed for sensor interfacing and data acquisition systems. Additionally, it is utilized in consumer electronics for tasks like audio signal processing and battery monitoring. Its robust performance and ease of integration make it a versatile choice across multiple industries.
Q & A
1. What is the resolution of the ADC081C021CIMK/NOPB?
The ADC081C021CIMK/NOPB has an 8-bit resolution.
2. What is the operating voltage range?
It operates within a supply voltage range of 2.7V to 5.5V.
3. How many input channels does it support?
It supports a single input channel.
4. What is the maximum conversion rate?
The maximum conversion rate is 188.9 kSPS (kilo samples per second).
5. What is the power consumption of this ADC?
The typical power consumption is 0.5 mW at 3.3V.
6. What interface does it use for communication?
It uses the I2C interface for communication.
7. What is the operating temperature range?
It operates within a temperature range of -40°C to +125°C.
8. What package does the ADC081C021CIMK/NOPB come in?
It comes in a SOT-23-6 package.
9. Is this ADC suitable for battery-powered devices?
Yes, its low power consumption makes it ideal for battery-powered devices.
10. What are typical applications of this ADC?
Typical applications include portable electronics, industrial automation, and consumer electronics.
