Overview

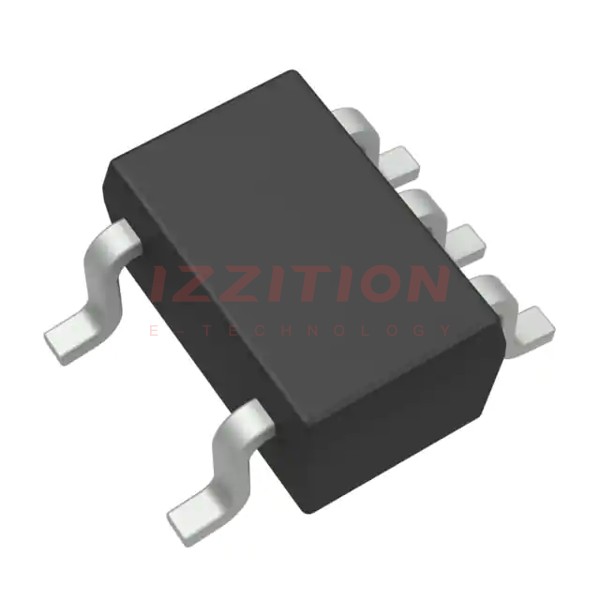

The SN74LVC1G125DCKTE4, produced by Texas Instruments, is a single bus buffer gate with a 3-state output. This device is designed to operate over a wide voltage range of 1.65 V to 5.5 V, making it versatile for various applications. It features a single line driver with high output drive capability and low power consumption, making it suitable for systems requiring efficient signal transmission and minimal power dissipation.
Key Specifications
| Parameter | Unit | Min | Max |
|---|---|---|---|
| Operating Voltage (VCC) | V | 1.65 | 5.5 |
| Operating Temperature Range | °C | -40 | 125 |
| Propagation Delay (tpd) at 3.3 V | ns | 0.6 | 3.7 |
| Output Drive at 3.3 V | mA | -24 | 24 |
| Static Power Consumption (ICC) | μA | - | 10 |
| Package Type | - | - | SC-70-5 (DCK) |
| Pins | - | - | 5 |
Key Features
- Supports 5-V VCC operation and inputs accepting voltages up to 5.5 V
- Provides down translation to VCC
- Low power consumption with a maximum ICC of 10 μA
- High output drive capability of ±24 mA at 3.3 V
- Supports live insertion, partial-power-down mode, and back-drive protection
- ESD protection exceeds JESD 22 standards (2000-V human-body model, 200-V machine model, 1000-V charged-device model)
- Latch-up performance exceeds 100 mA per JESD 78, Class II
- Available in ultra-small packages such as DPW with 0.5-mm pitch
Applications
The SN74LVC1G125DCKTE4 is suitable for a variety of applications, including:
- Video broadcasting and infrastructure systems
- IP-based multi-format transcoders
- Video communications systems
- General-purpose logic and signal buffering in digital circuits
Q & A
- What is the operating voltage range of the SN74LVC1G125DCKTE4? The operating voltage range is from 1.65 V to 5.5 V.
- What is the maximum propagation delay at 3.3 V? The maximum propagation delay at 3.3 V is 3.7 ns.
- What is the output drive capability at 3.3 V? The output drive capability at 3.3 V is ±24 mA.
- What type of package is the SN74LVC1G125DCKTE4 available in? It is available in the SC-70-5 (DCK) package.
- How many pins does the SN74LVC1G125DCKTE4 have? It has 5 pins.
- What are the ESD protection levels for this device? The device has ESD protection exceeding JESD 22 standards (2000-V human-body model, 200-V machine model, 1000-V charged-device model).
- Does the SN74LVC1G125DCKTE4 support live insertion and partial-power-down mode? Yes, it supports live insertion, partial-power-down mode, and back-drive protection.
- What is the latch-up performance of the SN74LVC1G125DCKTE4? The latch-up performance exceeds 100 mA per JESD 78, Class II.
- What are some common applications for the SN74LVC1G125DCKTE4? Common applications include video broadcasting, IP-based multi-format transcoders, and video communications systems.
- What is the maximum static power consumption of the SN74LVC1G125DCKTE4? The maximum static power consumption is 10 μA.
