Overview

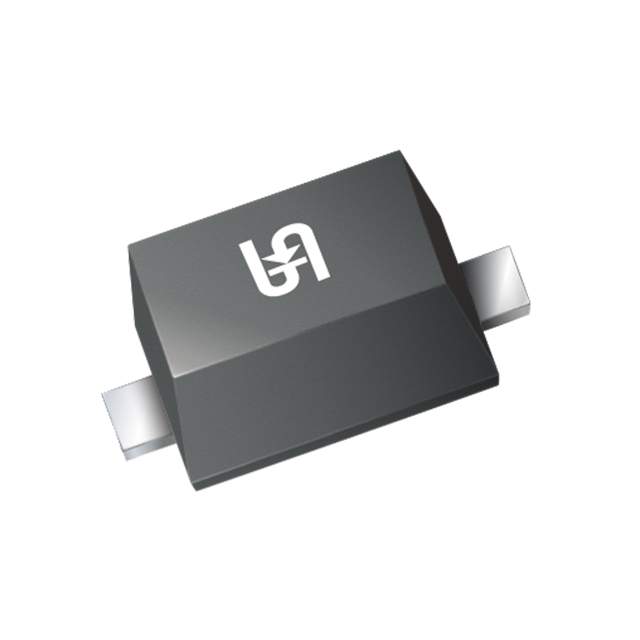

The BZX585B4V7 RKG is a single, silicon-based Zener diode manufactured by Taiwan Semiconductor Corporation. This component is designed to provide voltage regulation and is particularly suited for power management applications. It is part of the broader family of Zener diodes, which are essential for stabilizing voltages in electronic circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (Vz) | 4.7V |
| Power Dissipation (Pz) | 200mW |
| Tolerance | 2% |
| Packaging | Tape & Reel (TR), SOD523F |
| Type | Single Zener Diode |
Key Features
- Single silicon-based Zener diode for voltage regulation.
- Low power dissipation of 200mW.
- Tight voltage tolerance of 2%.
- Compact SOD523F packaging.
- Ideal for power management applications.
Applications
The BZX585B4V7 RKG Zener diode is widely used in various electronic circuits where stable voltage regulation is crucial. These applications include:
- Power supplies and voltage regulators.
- Audio and video equipment.
- Automotive electronics.
- Industrial control systems.
- Consumer electronics.
Q & A
- What is the voltage rating of the BZX585B4V7 RKG Zener diode?
The voltage rating of the BZX585B4V7 RKG Zener diode is 4.7V. - What is the power dissipation capacity of this diode?
The power dissipation capacity is 200mW. - What is the tolerance of the BZX585B4V7 RKG Zener diode?
The tolerance is 2%. - In what type of packaging is the BZX585B4V7 RKG available?
The diode is available in Tape & Reel (TR) and SOD523F packaging. - What are the primary applications of the BZX585B4V7 RKG Zener diode?
The primary applications include power supplies, audio and video equipment, automotive electronics, industrial control systems, and consumer electronics. - Who is the manufacturer of the BZX585B4V7 RKG Zener diode?
The manufacturer is Taiwan Semiconductor Corporation. - What type of diode is the BZX585B4V7 RKG?
The BZX585B4V7 RKG is a single silicon-based Zener diode. - Why is the BZX585B4V7 RKG used in power management applications?
It is used due to its ability to provide stable voltage regulation and its low power dissipation. - Is the BZX585B4V7 RKG suitable for high-power applications?
No, it is not suitable for high-power applications due to its 200mW power dissipation limit. - Where can I purchase the BZX585B4V7 RKG Zener diode?
You can purchase it from various electronic component distributors and online marketplaces.
