Overview

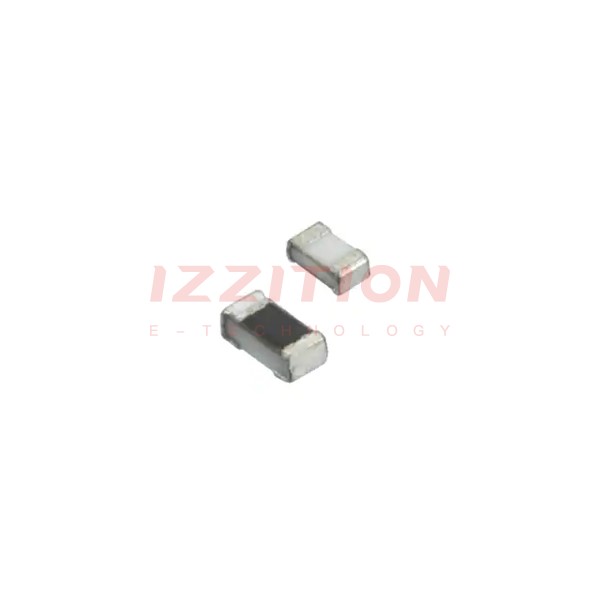

The RG1608N-2213-B-T5 is a high-precision thin film surface mount resistor manufactured by Susumu. This component is part of the RG series, known for its long-term stability and high precision. It is designed for applications requiring low noise and high reliability, making it suitable for various industries including automotive, industrial, and medical electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Susumu |
| Part Number | RG1608N-2213-B-T5 |
| Package | 0603 |
| Resistance | 221 kΩ |
| Tolerance | ±0.1% |
| Temperature Coefficient of Resistance (TCR) | ±10 ppm/°C |
| Power Rating | 1/10 W (100 mW) |
| Voltage Rating | 100 V |
| Operating Temperature Range | -55°C to +155°C |
| Dimensions (L x W x t) | 1.60 mm x 0.80 mm x 0.30 mm |
Key Features
- High precision resistance tolerance: ±0.1%
- Low temperature coefficient of resistance: ±10 ppm/°C
- Long-term stability with inorganic passivation: Less than ±0.1% drift after 10,000 hours of reliability test
- Thin film structure enabling low noise and anti-sulfur properties
- Surface mount technology (SMT) for easy assembly
- Compliant with RoHS regulations
Applications
- Automotive electronics
- Industrial measurement and instrumentation
- Industrial machines
- Various sensors
- Medical electronics
Q & A
- What is the resistance value of the RG1608N-2213-B-T5 resistor?
The resistance value is 221 kΩ. - What is the tolerance of the RG1608N-2213-B-T5 resistor?
The tolerance is ±0.1%. - What is the temperature coefficient of resistance (TCR) of the RG1608N-2213-B-T5 resistor?
The TCR is ±10 ppm/°C. - What is the power rating of the RG1608N-2213-B-T5 resistor?
The power rating is 1/10 W (100 mW). - What is the voltage rating of the RG1608N-2213-B-T5 resistor?
The voltage rating is 100 V. - What is the operating temperature range of the RG1608N-2213-B-T5 resistor?
The operating temperature range is -55°C to +155°C. - Is the RG1608N-2213-B-T5 resistor RoHS compliant?
Yes, it is RoHS compliant. - What are the typical applications of the RG1608N-2213-B-T5 resistor?
Typical applications include automotive electronics, industrial measurement and instrumentation, industrial machines, various sensors, and medical electronics. - What is the package type of the RG1608N-2213-B-T5 resistor?
The package type is 0603. - What are the dimensions of the RG1608N-2213-B-T5 resistor?
The dimensions are 1.60 mm x 0.80 mm x 0.30 mm.
