Overview
The VND5T100AJ-E is a monolithic device developed by STMicroelectronics using their VIPower technology. It is designed to drive resistive or inductive loads with one side connected to the ground. The device features an active VCC pin voltage clamp to protect against low energy spikes and integrates an analog current sense that delivers a current proportional to the load current. Fault conditions such as overload, overtemperature, or short to VCC are reported via the current sense pin. The device includes output current limitation and latches off in case of overload or thermal shutdown, with the ability to reset via a low level pass on the fault reset standby pin.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Operating Supply Voltage (VCC) | 8 to 36 | V |
| Typical On-State Resistance (RON) | 100 mΩ | mΩ |
| Current Limitation (ILIM) | 22 A | A |
| Off-State Supply Current (IS) | 2 µA | µA |
| Junction Operating Temperature (Tj) | -40 to 150 | °C |
| Storage Temperature (Tstg) | -55 to 150 | °C |

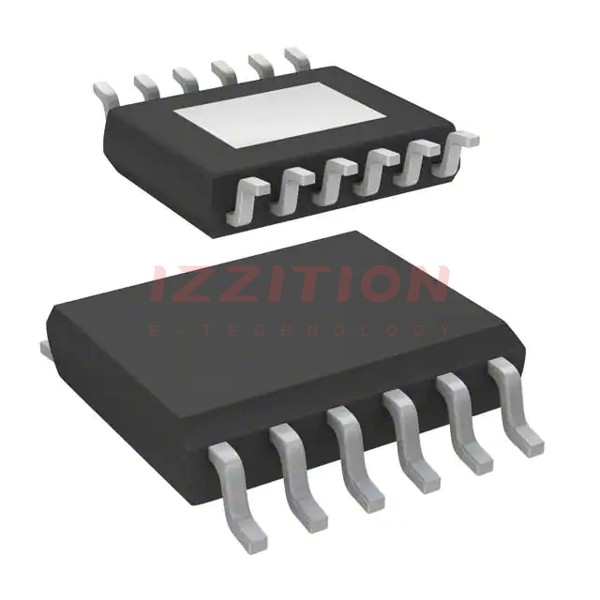

| Package | PowerSSO-12 | |
| Electrostatic Discharge Protection (VESD) | 4000 to 5000 V | V |
Key Features
- AEC-Q100 qualified
- Very low standby current
- 3.0 V CMOS compatible input
- Optimized electromagnetic emission and very low electromagnetic susceptibility
- Compliant with European directive 2002/95/EC
- Fault reset standby pin (FR_Stby)
- Diagnostic functions including proportional load current sense and high current sense precision
- Overload and short to ground latch-off, thermal shutdown latch-off
- Undervoltage shutdown, overvoltage clamp, load current limitation
- Protection against loss of ground and loss of VCC, electrostatic discharge protection
Applications
The VND5T100AJ-E is suitable for driving all types of resistive, inductive, and capacitive loads, particularly in automotive applications. Its robust design and comprehensive protection features make it ideal for use in various automotive systems where reliability and safety are critical.
Q & A
- What is the VND5T100AJ-E used for?
The VND5T100AJ-E is used for driving resistive or inductive loads with one side connected to the ground, particularly in automotive applications.
- What is the operating supply voltage range of the VND5T100AJ-E?
The operating supply voltage range is from 8 V to 36 V.
- What is the typical on-state resistance of the VND5T100AJ-E?
The typical on-state resistance (RON) is 100 mΩ.
- How does the device protect against fault conditions?
The device reports fault conditions such as overload, overtemperature, or short to VCC via the current sense pin and includes features like overload and thermal shutdown latch-off.
- What is the purpose of the fault reset standby pin (FR_Stby)?
The fault reset standby pin (FR_Stby) is used to reset the device in case of latch-off for overload or thermal shutdown conditions.
- What are the thermal operating and storage temperatures of the VND5T100AJ-E?
The junction operating temperature (Tj) is -40 to 150 °C, and the storage temperature (Tstg) is -55 to 150 °C.
- What package type does the VND5T100AJ-E come in?
The device comes in a PowerSSO-12 package.
- Does the VND5T100AJ-E have electrostatic discharge protection?
Yes, the device has electrostatic discharge protection with VESD ratings ranging from 4000 to 5000 V.
- Is the VND5T100AJ-E compliant with any specific automotive standards?
Yes, it is AEC-Q100 qualified.
- What is the maximum current limitation of the VND5T100AJ-E?
The maximum current limitation (ILIM) is typically 22 A.
