Overview
The VB027(6)-E is a high-voltage ignition coil driver power IC manufactured by STMicroelectronics. This integrated circuit is part of the VIPower™ series and is designed for driving high-voltage loads, particularly in automotive and industrial applications. The device features a robust design with various protection mechanisms, making it suitable for demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Number | VB027(6)-E |
| Description | IC PWR DRVR BIPOLAR 5PENTAWATTHV |

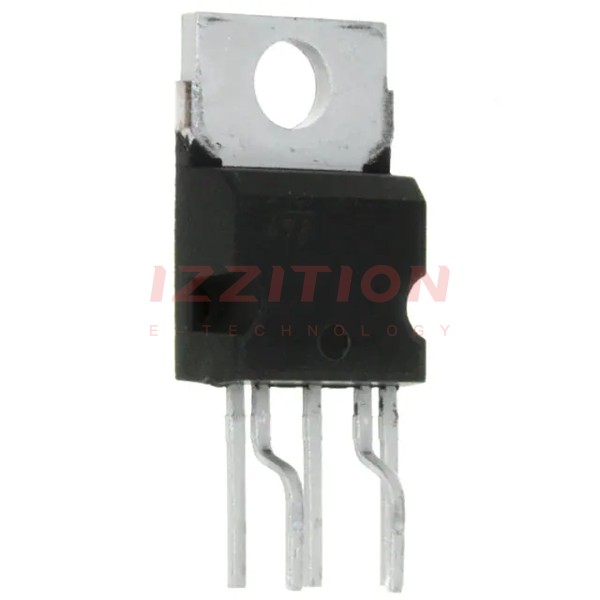

| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | Bipolar |
| Interface | Parallel |
| Input Type | Non-Inverting |
| Voltage - Load | 4.5 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Fault Protection | Over Temperature |
Key Features
- Status Flag: The IC includes a status flag for monitoring the device's operational state.
- Fault Protection: Over temperature protection to ensure the device operates safely under adverse conditions.
- High Voltage Capability: Designed to handle high-voltage loads, making it suitable for automotive and industrial applications.
- Robust Package: The Pentawatt-5 HV package with bent and staggered leads provides mechanical stability and ease of mounting.
- Wide Operating Temperature Range: Operates from -40°C to 150°C, ensuring reliability in various environmental conditions.
Applications
- Automotive Systems: Ideal for ignition coil drivers, fuel injectors, and other high-voltage applications in vehicles.
- Industrial Control Systems: Suitable for driving high-voltage loads in industrial control and automation systems.
- Power Distribution Systems: Can be used in power distribution and load driver applications requiring high reliability and robustness.
Q & A
- What is the part number of this IC?
The part number is VB027(6)-E.
- Who is the manufacturer of the VB027(6)-E?
The manufacturer is STMicroelectronics.
- What is the package type of the VB027(6)-E?
The package type is Pentawatt-5 HV (Bent and Staggered Leads).
- What is the operating temperature range of the VB027(6)-E?
The operating temperature range is -40°C to 150°C (TJ).
- Does the VB027(6)-E have fault protection features?
- What is the voltage range for the load in the VB027(6)-E?
The voltage range for the load is 4.5 V ~ 5.5 V.
- Is the VB027(6)-E RoHS compliant?
- What is the input type of the VB027(6)-E?
The input type is non-inverting.
- What is the output configuration of the VB027(6)-E?
The output configuration is low side.
- What is the typical application of the VB027(6)-E?
