Overview
The TSV992IQ2T is a dual operational amplifier from STMicroelectronics, part of the TSV99x and TSV99xA family. It is designed for low voltage operation and features rail-to-rail input and output. This device is notable for its excellent speed/power consumption ratio, making it suitable for a variety of applications including sensor interfaces, battery-supplied devices, and portable electronics. The TSV992IQ2T operates within a voltage range of 2.5 V to 5.5 V and is stable for gains above 4 or below -3, with a gain-bandwidth product of 20 MHz.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 2 |
| Bandwidth | 20 MHz |
| Slew Rate | 10 V/µs |
| Input Offset Voltage | 1.5 mV max. (A grade) |
| Input Bias Current | 1 pA typ. |
| Supply Voltage Range | 2.5 V to 5.5 V |
| Operating Temperature Range | -40°C to 125°C |

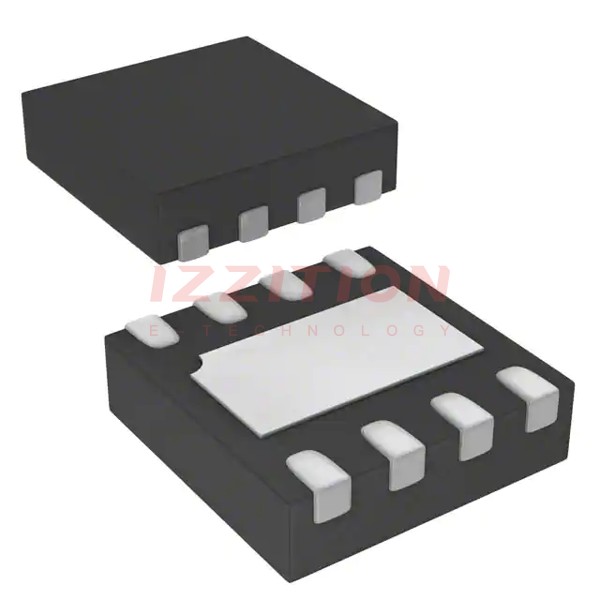

| Package Type | DFN-8L P 0.5 mm |
| Power Consumption | 820 µA typ. at 5 V |
| Output Current | 35 mA |
| RoHS Compliance | Ecopack3 |
Key Features
- Rail-to-rail input and output
- Wide bandwidth of 20 MHz
- Stable for gains above 4 or below -3
- Low power consumption: 820 µA typ. at 5 V
- High output current: 35 mA
- Ultra-low input bias current: 1 pA typ.
- Internal ESD protection ≥ 5 kV
- Operating from 2.5 V to 5.5 V
Applications
The TSV992IQ2T is ideal for various applications, including:
- Sensor interfaces
- Battery-supplied and portable electronics
- Active filtering
- Industrial, automotive, and consumer electronics
Q & A
- What is the bandwidth of the TSV992IQ2T operational amplifier?
The bandwidth of the TSV992IQ2T is 20 MHz. - What is the typical power consumption of the TSV992IQ2T at 5 V?
The typical power consumption is 820 µA at 5 V. - What is the input bias current of the TSV992IQ2T?
The input bias current is 1 pA typical. - What is the operating temperature range of the TSV992IQ2T?
The operating temperature range is -40°C to 125°C. - What are the package options available for the TSV992IQ2T?
The TSV992IQ2T is available in DFN-8L P 0.5 mm package among others. - Is the TSV992IQ2T RoHS compliant?
Yes, the TSV992IQ2T is RoHS compliant with an Ecopack3 rating. - What is the slew rate of the TSV992IQ2T?
The slew rate is 10 V/µs. - What are some typical applications of the TSV992IQ2T?
Typical applications include sensor interfaces, battery-supplied and portable electronics, and active filtering. - What is the maximum output current of the TSV992IQ2T?
The maximum output current is 35 mA. - Does the TSV992IQ2T have internal ESD protection?
Yes, it has internal ESD protection ≥ 5 kV.
