Overview
The TSV854IQ4T is a low-power, high-accuracy, general-purpose operational amplifier produced by STMicroelectronics. This component is part of STMicroelectronics' micropower op amp portfolio, designed to offer high performance while minimizing power consumption. The TSV854IQ4T is particularly notable for its low power consumption and high accuracy, making it suitable for a variety of applications where energy efficiency and precision are critical.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 1.3 MHz |
| Supply Voltage Range | 2.3 V to 5.5 V |

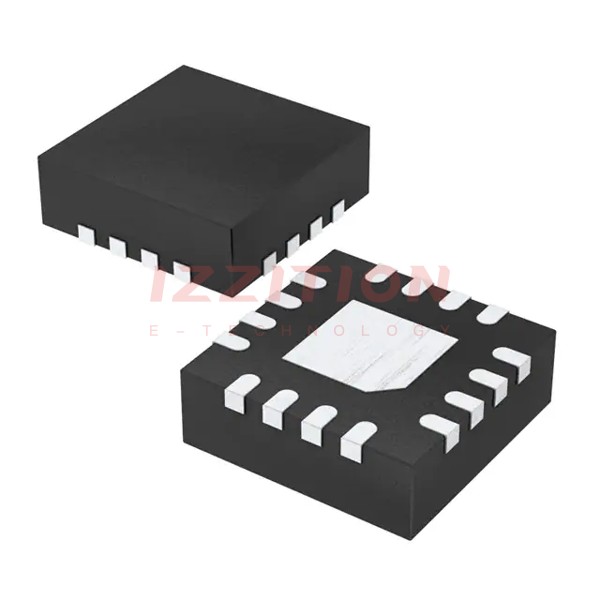

| Package Type | QFN16 (3x3) |
| Operating Temperature Range | -40°C to 125°C |
| Input Offset Voltage | |
| Input Bias Current | |
| Quiescent Current |
Key Features
- Low power consumption: Typically 2 μA per channel, making it suitable for battery-powered devices and energy-efficient designs.
- High accuracy: Low input offset voltage and high input impedance ensure precise signal processing.
- Rail-to-rail input and output: Allows for maximum signal swing and flexibility in circuit design.
- Compact package: QFN16 (3x3) package saves board space and is ideal for dense PCB designs.
- Wide supply voltage range: Operates from 2.3 V to 5.5 V, accommodating various power supply configurations.
Applications
The TSV854IQ4T is versatile and can be used in a variety of applications, including:
- Battery-powered devices: Due to its low power consumption, it is ideal for portable electronics and IoT devices.
- Sensor interfaces: Its high accuracy and low noise make it suitable for interfacing with sensors in industrial, medical, and consumer electronics.
- Audio and signal processing: The rail-to-rail input and output capabilities make it a good choice for audio and signal processing circuits.
- Automotive and industrial control systems: The component's robustness and wide operating temperature range make it suitable for harsh environments.
Q & A
- What is the typical quiescent current of the TSV854IQ4T?
The typical quiescent current is 2 μA per channel. - What is the bandwidth of the TSV854IQ4T?
The bandwidth is 1.3 MHz. - What is the supply voltage range for the TSV854IQ4T?
The supply voltage range is from 2.3 V to 5.5 V. - What type of package does the TSV854IQ4T come in?
The TSV854IQ4T comes in a QFN16 (3x3) package. - What are the key features of the TSV854IQ4T?
Key features include low power consumption, high accuracy, rail-to-rail input and output, and a compact package. - What are some typical applications for the TSV854IQ4T?
Typical applications include battery-powered devices, sensor interfaces, audio and signal processing, and automotive and industrial control systems. - What is the operating temperature range of the TSV854IQ4T?
The operating temperature range is from -40°C to 125°C. - How many channels does the TSV854IQ4T have?
The TSV854IQ4T has 4 channels. - What is the input offset voltage of the TSV854IQ4T?
The typical input offset voltage is 0.5 mV. - Is the TSV854IQ4T suitable for harsh environments?
Yes, it is suitable for harsh environments due to its robustness and wide operating temperature range.
