Overview
The TSV711ICT, produced by STMicroelectronics, is a single operational amplifier from the TSV71x series. This series is known for its low-voltage operation, rail-to-rail input and output, and excellent accuracy. The TSV711ICT is designed using STMicroelectronics' 5 V CMOS technology, offering a balance between speed and power consumption. It is particularly suited for applications requiring high precision and low power consumption.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Supply Voltage (VCC) | 1.5 V to 5.5 V | |
| Gain Bandwidth Product | 150 kHz (typ.) | |
| Input Bias Current | 1 pA (typ.) | |
| Input Offset Voltage (Vio) | < 200 μV at 25 °C | |
| Input Common Mode Range | VCC - 0.1 V to VCC + 0.1 V | |
| Output Voltage Range | 40 mV below VCC and 75 mV above GND with a 10 kΩ load | |
| Operating Temperature Range | -40 °C to +125 °C | |
| Package | SC70-5 |
Key Features
- Low-Voltage Operation: The TSV711ICT operates from a supply voltage range of 1.5 V to 5.5 V.
- Rail-to-Rail Input and Output: The device features rail-to-rail input and output stages, allowing the input common mode range to extend from VCC - 0.1 V to VCC + 0.1 V and the output to swing close to the supply rails.
- High Accuracy: The operational amplifier has an input offset voltage of less than 200 μV at 25 °C.
- Low Input Bias Current: With a typical input bias current of 1 pA, it is suitable for high-impedance sensor interfaces.

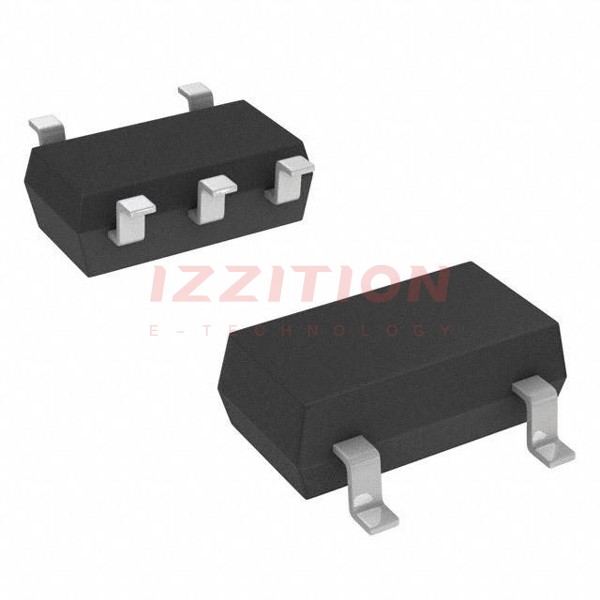

- Compact Package: Available in the SC70-5 package, making it ideal for space-constrained designs.
Applications
- Battery-Powered Applications: Suitable for devices that require low power consumption and high accuracy.
- Portable Devices: Ideal for handheld and portable electronics due to its low voltage and low power characteristics.
- Sensor Interfaces: Used in sensor interfaces where high accuracy and low input bias current are critical.
- Active Filtering: Can be used in active filter circuits requiring precision and low power consumption.
Q & A
- What is the supply voltage range of the TSV711ICT?
The TSV711ICT operates from a supply voltage range of 1.5 V to 5.5 V.
- What is the gain bandwidth product of the TSV711ICT?
The gain bandwidth product is typically 150 kHz.
- What is the input offset voltage of the TSV711ICT?
The input offset voltage is less than 200 μV at 25 °C.
- What is the input bias current of the TSV711ICT?
The input bias current is typically 1 pA.
- What is the operating temperature range of the TSV711ICT?
The operating temperature range is from -40 °C to +125 °C.
- In what package is the TSV711ICT available?
The TSV711ICT is available in the SC70-5 package.
- What are some typical applications of the TSV711ICT?
Typical applications include battery-powered devices, portable electronics, sensor interfaces, and active filtering.
- Does the TSV711ICT have rail-to-rail input and output?
Yes, the TSV711ICT features rail-to-rail input and output stages.
- How does the TSV711ICT handle input common mode range?
The input common mode range extends from VCC - 0.1 V to VCC + 0.1 V.
- What is the recommended decoupling capacitor for the TSV711ICT?
A 10 nF decoupling capacitor is recommended to be placed close to the power supply pins.
