Overview

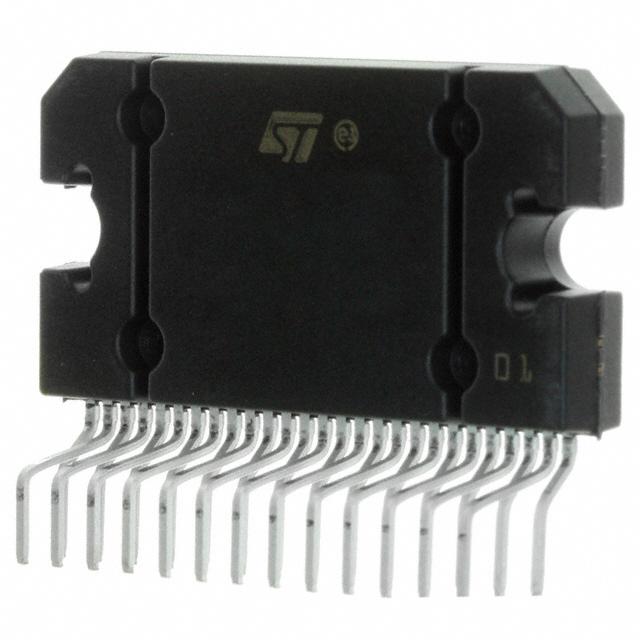

The TDA75610SEP-HLX is a 4-channel (quad) Class AB audio amplifier integrated circuit produced by STMicroelectronics. This component is designed to provide high-quality audio output with advanced diagnostics and robust protection features, making it suitable for automotive and other demanding audio applications.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 4 (Quad) |
| Amplifier Class | Class AB |
| Output Power (per channel) | Up to 45W @ 4Ω, 14.4V, 1% THD |
| PWM Switching Frequency | 400 kHz |
| Operating Voltage Range | 6V to 18V |
| Operating Temperature Range | -40°C to 150°C |
| Package Type | PowerSO-36 |
Key Features
- Advanced diagnostics including overtemperature, short-circuit, and overvoltage protection
- High PWM switching frequency for efficient operation
- High-resolution audio output
- Robust design for automotive and harsh environments
- Low distortion and high sound quality
Applications
The TDA75610SEP-HLX is primarily used in automotive audio systems, but it is also suitable for other applications requiring high-quality audio output and robust protection features, such as industrial audio systems, marine audio systems, and professional audio equipment.
Q & A
- What is the TDA75610SEP-HLX? The TDA75610SEP-HLX is a 4-channel Class AB audio amplifier IC from STMicroelectronics.
- What is the output power of the TDA75610SEP-HLX? The output power is up to 45W per channel at 4Ω, 14.4V, and 1% THD.
- What is the PWM switching frequency of the TDA75610SEP-HLX? The PWM switching frequency is 400 kHz.
- What are the key protection features of the TDA75610SEP-HLX? The key protection features include overtemperature, short-circuit, and overvoltage protection.
- What is the operating voltage range of the TDA75610SEP-HLX? The operating voltage range is from 6V to 18V.
- What is the package type of the TDA75610SEP-HLX? The package type is PowerSO-36.
- What are the typical applications of the TDA75610SEP-HLX? Typical applications include automotive audio systems, industrial audio systems, marine audio systems, and professional audio equipment.
- Does the TDA75610SEP-HLX support high-resolution audio? Yes, it supports high-resolution audio output.
- What is the operating temperature range of the TDA75610SEP-HLX? The operating temperature range is from -40°C to 150°C.
- Where can I purchase the TDA75610SEP-HLX? You can purchase it from distributors like Digi-Key, Mouser, and Avnet.
