Overview
The STULPI01BTBR is a high-speed USB 2.0 transceiver developed by STMicroelectronics, compliant with ULPI (UTMI+ low pin interface) and OTG (On-The-Go) specifications. This component provides a complete physical layer solution for high-speed USB host, device, or OTG dual-role cores. It enables USB ASICs to interface with the physical layer of the USB through a 12-pin interface, incorporating features such as VBUS comparators, an ID line detector, USB differential drivers and receivers, and a complete ULPI register map and interrupt generator. The STULPI01BTBR is particularly suited for mobile and battery-powered applications due to its low-power consumption, power-down operating mode, and compact package dimensions.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| USB Speed Modes | 480 Mbit/s (High-speed), 12 Mbit/s (Full-speed), 1.5 Mbit/s (Low-speed) | |
| Supply Voltage Range | +3 V to +4.5 V | V |
| Operating Temperature Range | –40 to 85 °C | °C |

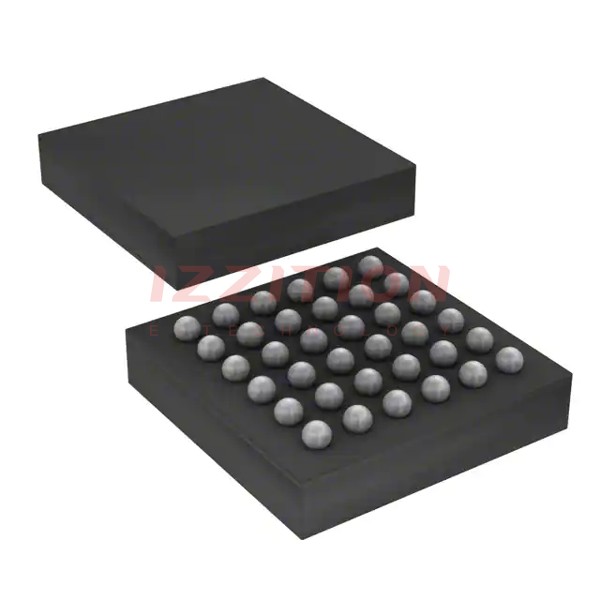

| Package Type | µTFBGA36 | |
| ULPI Interface | Standard ULPI 1.1 digital interface | |
| Integrated Voltage Regulators | 3.3 V and 1.2 V | V |
| Power Consumption (Active Mode) | 15 mA (USB bus idle), 30 mA (FS transmission), 50 mA (HS transmission) | mA |
| Power Consumption (Power-down Mode) | 0.4 to 2 µA | µA |
Key Features
- USB-IF high-speed certified to the universal serial bus specification rev. 2.0
- Meets the requirements of the universal serial bus specification rev. 2.0, On-The-Go supplement to the USB 2.0 specification 1.0a and ULPI transceiver specification 1.1
- Supports session request protocol (SRP) and host negotiation protocol (HNP) for dual-role device features
- Ability to control external charge pump for higher VBUS currents
- Integrated overcurrent detector and USB 2.0 “short-circuit withstand” protection
- Integrated HS termination and FS/LS/OTG pull-up/pull-down resistors
- Power-down mode with very low-power consumption for battery-powered devices
- Ideal for system ASICs with built-in USB host, device or OTG cores
Applications
- Mobile phones
- PDAs
- MP3 players
- Digital still cameras
- Set-top boxes
- Portable navigation devices
Q & A
- What is the STULPI01BTBR? The STULPI01BTBR is a high-speed USB 2.0 transceiver compliant with ULPI and OTG specifications, providing a physical layer solution for USB host, device, or OTG dual-role cores.
- What are the supported USB speed modes? The STULPI01BTBR supports 480 Mbit/s High-speed, 12 Mbit/s Full-speed, and 1.5 Mbit/s Low-speed modes.
- What is the operating temperature range of the STULPI01BTBR? The operating temperature range is –40 to 85 °C.
- What package type is the STULPI01BTBR available in? The STULPI01BTBR is available in a µTFBGA36 package.
- Does the STULPI01BTBR support dual-role device features? Yes, it supports session request protocol (SRP) and host negotiation protocol (HNP) for dual-role device features.
- What are the integrated voltage regulators in the STULPI01BTBR? The STULPI01BTBR has integrated 3.3 V and 1.2 V voltage regulators.
- What is the power consumption in power-down mode? The power consumption in power-down mode is 0.4 to 2 µA.
- Is the STULPI01BTBR suitable for battery-powered devices? Yes, it is suitable due to its low-power consumption and power-down operating mode.
- What kind of protection does the STULPI01BTBR offer? It offers integrated overcurrent detection and USB 2.0 “short-circuit withstand” protection.
- What are some common applications of the STULPI01BTBR? Common applications include mobile phones, PDAs, MP3 players, digital still cameras, set-top boxes, and portable navigation devices.
