Overview
The STM32F469ZGT6TR is a high-performance microcontroller from STMicroelectronics, part of the STM32F4 series. It is based on the ARM® Cortex®-M4 core, which provides a balance between high processing power and low power consumption. This microcontroller is designed for a wide range of applications, including industrial control, medical devices, and consumer electronics. With its advanced features and robust specifications, the STM32F469ZGT6TR is an ideal choice for developers seeking a reliable and powerful MCU for their projects.
Key Specifications
| Specification | Value |
|---|---|
| Core Processor | ARM® Cortex®-M4 32-Bit Single-Core |
| Maximum Clock Frequency | 180 MHz |
| Flash Memory | 1 MB (1M x 8) |
| Data RAM Size | 384 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 106 I/O |

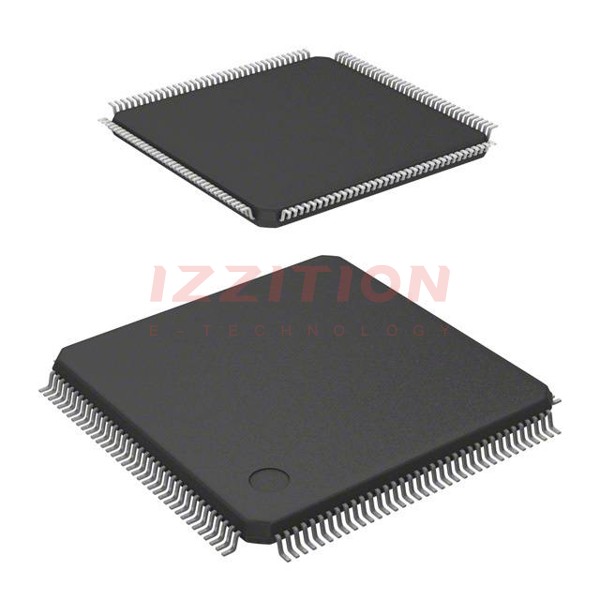

| Package Type | LQFP144 (20x20 mm) |
| Operating Voltage | 1.7 V to 3.6 V |
Key Features
- High-performance ARM® Cortex®-M4 32-bit RISC core
- Up to 180 MHz clock frequency
- 1 MB of Flash memory and 384 kB of SRAM
- 12-bit ADC with up to 24 channels
- Advanced peripherals including USB OTG HS/FS, Ethernet, and CAN
- Low power modes for energy-efficient operation
- Support for a wide range of development tools and software libraries
Applications
The STM32F469ZGT6TR is versatile and can be used in various applications such as:
- Industrial control systems
- Medical devices
- Consumer electronics
- Automotive systems
- IoT devices
- Robotics and automation
Q & A
- What is the core processor of the STM32F469ZGT6TR?
The core processor is the ARM® Cortex®-M4 32-Bit Single-Core. - What is the maximum clock frequency of the STM32F469ZGT6TR?
The maximum clock frequency is 180 MHz. - How much Flash memory does the STM32F469ZGT6TR have?
The STM32F469ZGT6TR has 1 MB of Flash memory. - What is the ADC resolution of the STM32F469ZGT6TR?
The ADC resolution is 12 bits. - What is the package type of the STM32F469ZGT6TR?
The package type is LQFP144 (20x20 mm). - What is the operating voltage range of the STM32F469ZGT6TR?
The operating voltage range is from 1.7 V to 3.6 V. - What are some common applications of the STM32F469ZGT6TR?
Common applications include industrial control systems, medical devices, consumer electronics, automotive systems, IoT devices, and robotics. - Does the STM32F469ZGT6TR support low power modes?
Yes, it supports low power modes for energy-efficient operation. - What kind of development tools and software libraries are available for the STM32F469ZGT6TR?
The STM32F469ZGT6TR supports a wide range of development tools and software libraries provided by STMicroelectronics. - How many I/Os does the STM32F469ZGT6TR have?
The STM32F469ZGT6TR has 106 I/Os.
