Overview
The STM32F413CHU6TR is a high-performance microcontroller from STMicroelectronics, part of the STM32F4 access line. It is based on the Arm® Cortex®-M4 32-bit RISC core, operating at a frequency of up to 100 MHz. The core features a floating-point unit (FPU) and supports all Arm single-precision data-processing instructions and data types. It also includes a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.
This microcontroller is designed for power efficiency, performance, and integration, and it includes innovative features such as the enhanced Batch Acquisition Mode (eBAM) to reduce power consumption during data batching.
Key Specifications
| Parameter | Specification |
|---|---|
| Core | Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™), frequency up to 100 MHz, memory protection unit, 125 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions |
| Flash Memory | Up to 1.5 Mbytes |
| SRAM | 320 Kbytes |
| Power Supply | 1.7 V to 3.6 V |
| Temperature Range | -40 °C to 85/105/125 °C |
| ADC | 1 × 12-bit, 2.4 MSPS, up to 16 channels |
| DAC | 2 × 12-bit D/A converters |
| Timers | Up to twelve 16-bit timers, two 32-bit timers up to 100 MHz each |
| Communication Interfaces | Up to 4x I2C, up to 10 UARTs, up to 5 SPI/I2S, USB 2.0 full-speed device/host/OTG controller, 3x CAN (2.0B Active) |

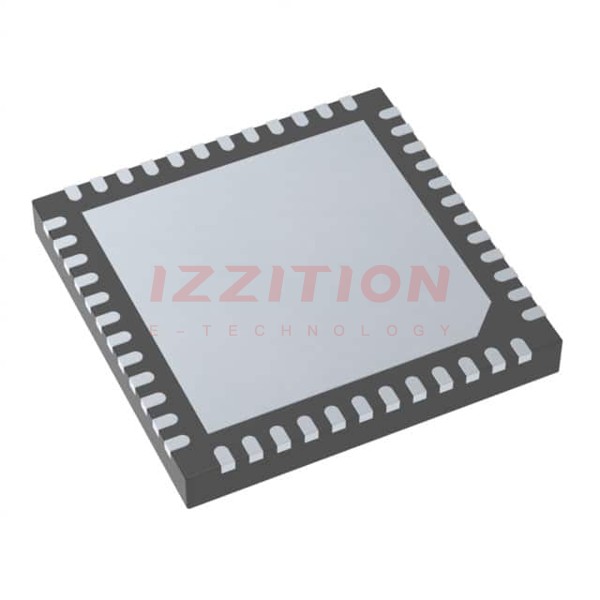

| Package | UFQFPN 48 7x7x0.55 mm |
| Power Consumption | Run: 112 µA/MHz (peripheral off), Stop: 42 µA Typ.; 80 µA max @25 °C, Standby without RTC: 1.1 µA Typ.; 14.7 µA max @85 °C |
Key Features
- Dynamic Efficiency Line with enhanced Batch Acquisition Mode (eBAM) for reduced power consumption during data batching.
- High-speed embedded memories: up to 1.5 Mbytes of flash memory, 320 Kbytes of SRAM.
- Extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
- Advanced communication interfaces: USB 2.0 full-speed device/host/OTG controller, up to 4x I2C, up to 10 UARTs, up to 5 SPI/I2S.
- General-purpose DMA: 16-stream DMA.
- True random number generator, CRC calculation unit, 96-bit unique ID.
- RTC with subsecond accuracy, hardware calendar.
- Up to 114 I/O ports with interrupt capability, up to 109 fast I/Os up to 50 MHz.
Applications
- Industrial automation and control systems.
- Medical devices requiring high precision and low power consumption.
- Aerospace and defense applications where reliability and performance are critical.
- Consumer electronics such as smart home devices and IoT applications.
- Automotive systems, including advanced driver-assistance systems (ADAS) and infotainment systems.
Q & A
- What is the core architecture of the STM32F413CHU6TR?
The STM32F413CHU6TR is based on the Arm® Cortex®-M4 32-bit RISC core with a floating-point unit (FPU) and DSP instructions.
- What is the maximum frequency of the CPU?
The CPU operates at a frequency of up to 100 MHz.
- How much flash memory does the STM32F413CHU6TR have?
It has up to 1.5 Mbytes of flash memory.
- What is the power supply range for this microcontroller?
The power supply range is from 1.7 V to 3.6 V.
- What are the key communication interfaces available on this microcontroller?
It includes USB 2.0 full-speed device/host/OTG controller, up to 4x I2C, up to 10 UARTs, and up to 5 SPI/I2S interfaces.
- What is the enhanced Batch Acquisition Mode (eBAM) feature?
eBAM is a feature that reduces power consumption during data batching.
- How many timers does the STM32F413CHU6TR have?
It has up to twelve 16-bit timers and two 32-bit timers up to 100 MHz each.
- What is the package type for the STM32F413CHU6TR?
The package type is UFQFPN 48 7x7x0.55 mm.
- What are the power consumption characteristics of this microcontroller?
Run: 112 µA/MHz (peripheral off), Stop: 42 µA Typ.; 80 µA max @25 °C, Standby without RTC: 1.1 µA Typ.; 14.7 µA max @85 °C.
- Does the STM32F413CHU6TR support debug modes?
Yes, it supports serial wire debug (SWD) & JTAG and Cortex®-M4 Embedded Trace Macrocell™.
- What is the temperature range for the STM32F413CHU6TR?
The temperature range is -40 °C to 85/105/125 °C.
