Overview
The ST7FLI15BF1U6TR is an 8-bit microcontroller (MCU) produced by STMicroelectronics. This device is part of the ST7 family, known for its single-voltage Flash memory, data EEPROM, and integrated peripherals. The ST7FLI15BF1U6TR is designed for a wide range of applications requiring low power consumption and high performance.
Key Specifications
| Specification | Value |
|---|---|
| Core | ST7 |
| Program Memory Size | 4 kB |
| Data RAM Size | 256 B |

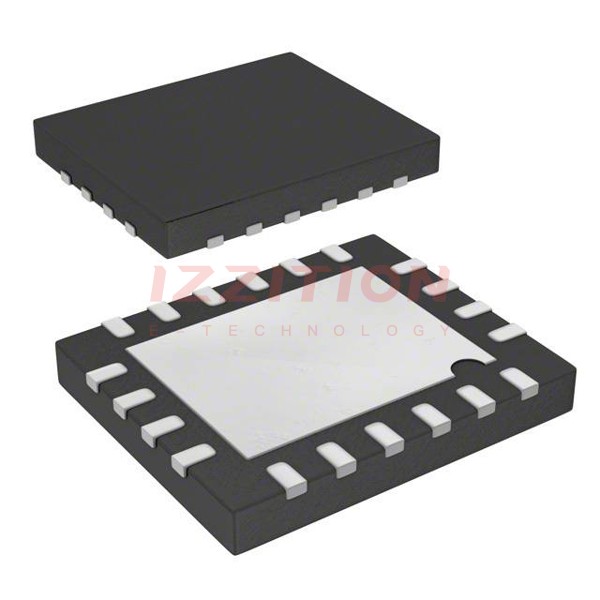

| Package / Case | QFN-20 |
| Maximum Clock Frequency | 8 MHz |
| ADC Resolution | 10 bit |
| Number of I/Os | 17 |
Key Features
- Single-Voltage Flash Memory: Allows for in-system programming and erasing.
- Data EEPROM: Provides non-volatile data storage.
- ADC (Analog-to-Digital Converter): 10-bit resolution for analog signal conversion.
- Timers: Includes five timers for various timing and control applications.
- SPI (Serial Peripheral Interface): Enables communication with other SPI-compatible devices.
- Low Power Consumption: Designed for applications requiring minimal power usage.
Applications
- Industrial Control Systems: Suitable for control and monitoring in industrial environments.
- Consumer Electronics: Used in various consumer devices requiring low power and high performance.
- Automotive Systems: Can be used in automotive applications due to its robust and reliable design.
- Medical Devices: Applicable in medical devices that require precise control and low power consumption.
Q & A
- What is the core type of the ST7FLI15BF1U6TR?
The core type is ST7.
- How much program memory does the ST7FLI15BF1U6TR have?
The program memory size is 4 kB.
- What is the package type of the ST7FLI15BF1U6TR?
The package type is QFN-20.
- What is the maximum clock frequency of the ST7FLI15BF1U6TR?
The maximum clock frequency is 8 MHz.
- What is the resolution of the ADC in the ST7FLI15BF1U6TR?
The ADC resolution is 10 bits.
- How many I/Os does the ST7FLI15BF1U6TR have?
The device has 17 I/Os.
- Does the ST7FLI15BF1U6TR have data EEPROM?
Yes, it includes data EEPROM for non-volatile data storage.
- What communication interfaces does the ST7FLI15BF1U6TR support?
It supports SPI (Serial Peripheral Interface) among other interfaces.
- What are some typical applications of the ST7FLI15BF1U6TR?
Typical applications include industrial control systems, consumer electronics, automotive systems, and medical devices.
- Why is the ST7FLI15BF1U6TR suitable for low power applications?
It is designed with low power consumption in mind, making it suitable for applications requiring minimal power usage.
- Can the ST7FLI15BF1U6TR be programmed in-system?
Yes, it supports in-system programming and erasing of the Flash memory.
