ST72F321AR9T6
  • Share:

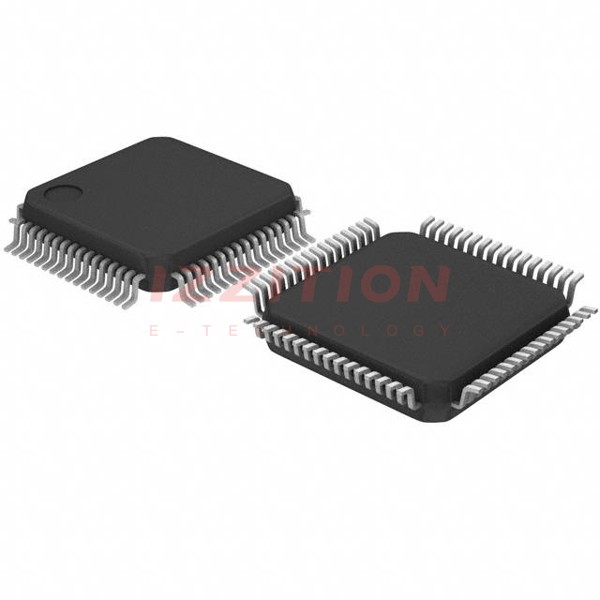

STMicroelectronics ST72F321AR9T6

Manufacturer No:
ST72F321AR9T6
Manufacturer:
STMicroelectronics
Package:
Tray
Description:
IC MCU 8BIT 60KB FLASH 64LQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The ST72F321AR9T6 is an 8-bit microcontroller produced by STMicroelectronics. This microcontroller is part of the ST7 family and is known for its robust set of features and peripherals, making it suitable for a variety of applications. Although the ST72F321AR9T6 is currently obsolete and no longer manufactured, it remains relevant for legacy systems and maintenance purposes.

Key Specifications

ParameterValue
Microcontroller Type8-bit
Package TypeTQFP 64-pin
Flash/ROM Size32 to 60 KB
ADCYes
TimersFive timers
Communication InterfacesSPI, SCI, I2C
Operating VoltageNot specified (refer to datasheet for detailed voltage range)

Key Features

  • 8-bit CPU with a wide range of addressing modes
  • 32 to 60 KB of Flash/ROM memory
  • On-chip ADC (Analog-to-Digital Converter)
  • Five timers, including watchdog and real-time clock
  • SPI, SCI, and I2C communication interfaces
  • Low power consumption and various power-saving modes

Applications

The ST72F321AR9T6 microcontroller is versatile and can be used in various applications such as industrial control systems, automotive systems, consumer electronics, and general-purpose embedded systems. Its robust set of peripherals and low power consumption make it suitable for battery-powered devices and systems requiring reliable performance.

Q & A

  1. What is the ST72F321AR9T6? The ST72F321AR9T6 is an 8-bit microcontroller from STMicroelectronics.
  2. What is the package type of the ST72F321AR9T6? The package type is TQFP 64-pin.
  3. How much Flash/ROM memory does it have? It has 32 to 60 KB of Flash/ROM memory.
  4. Does it have an ADC? Yes, it includes an on-chip ADC.
  5. What communication interfaces are available? It supports SPI, SCI, and I2C interfaces.
  6. Is the ST72F321AR9T6 still in production? No, the ST72F321AR9T6 is obsolete and no longer manufactured.
  7. What are some common applications for this microcontroller? It is used in industrial control systems, automotive systems, consumer electronics, and general-purpose embedded systems.
  8. What are the key features of the ST72F321AR9T6? Key features include an 8-bit CPU, 32 to 60 KB of Flash/ROM, ADC, five timers, and various communication interfaces.
  9. Where can I find detailed specifications for the ST72F321AR9T6? Detailed specifications can be found in the datasheet available from sources like Mouser, Digi-Key, and the official STMicroelectronics website.
  10. Are there any substitutes available for the ST72F321AR9T6? Yes, there are substitutes available for legacy systems and maintenance purposes.

Product Attributes

Core Processor:ST7
Core Size:8-Bit
Speed:8MHz
Connectivity:I²C, SCI, SPI
Peripherals:LVD, POR, PWM, WDT
Number of I/O:48
Program Memory Size:60KB (60K x 8)
Program Memory Type:Flash
EEPROM Size:-
RAM Size:2K x 8
Voltage - Supply (Vcc/Vdd):3.8V ~ 5.5V
Data Converters:A/D 16x10b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:64-LQFP
Supplier Device Package:-
0 Remaining View Similar

In Stock

-
251

Please send RFQ , we will respond immediately.

Same Series
ST72F321AR7T6TR
ST72F321AR7T6TR
IC MCU 8BIT 48KB FLASH 64TQFP
ST72F321AR7T6
ST72F321AR7T6
IC MCU 8BIT 48KB FLASH 64TQFP
ST72F321AR9T6TR
ST72F321AR9T6TR
IC MCU 8BIT 60KB FLASH 64LQFP
ST72F321R6T6TR
ST72F321R6T6TR
IC MCU 8BIT 32KB FLASH 64LQFP
ST72F321R6T6
ST72F321R6T6
IC MCU 8BIT 32KB FLASH 64LQFP
ST72F321J9T6
ST72F321J9T6
IC MCU 8BIT 60KB FLASH 44LQFP
ST72F321J7T6
ST72F321J7T6
IC MCU 8BIT 48KB FLASH 44LQFP
ST72F321J7T6TR
ST72F321J7T6TR
IC MCU 8BIT 48KB FLASH 44LQFP
ST72F321J9TC
ST72F321J9TC
IC MCU 8BIT 60KB FLASH 44LQFP
ST72F321J9TCTR
ST72F321J9TCTR
IC MCU 8BIT 60KB FLASH 44LQFP
ST72F321R6TC
ST72F321R6TC
IC MCU 8BIT 32KB FLASH 64LQFP
ST72F321R9TC
ST72F321R9TC
IC MCU 8BIT 60KB FLASH 64LQFP

Similar Products

Part Number ST72F321AR9T6 ST72F321R9T6 ST72F321BAR9T6 ST72F321BR9T6 ST72F321AR9TA ST72F321AR6T6 ST72F321AR7T6 ST72F321AR9T3
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Core Processor ST7 ST7 ST7 ST7 ST7 ST7 ST7 ST7
Core Size 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit 8-Bit
Speed 8MHz 8MHz 8MHz 8MHz 8MHz 8MHz 8MHz 8MHz
Connectivity I²C, SCI, SPI I²C, SCI, SPI I²C, SCI, SPI I²C, SCI, SPI I²C, SCI, SPI I²C, SCI, SPI I²C, SCI, SPI I²C, SCI, SPI
Peripherals LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT LVD, POR, PWM, WDT
Number of I/O 48 48 48 48 48 48 48 48
Program Memory Size 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 60KB (60K x 8) 32KB (32K x 8) 48KB (48K x 8) 60KB (60K x 8)
Program Memory Type Flash Flash Flash Flash Flash Flash Flash Flash
EEPROM Size - - - - - - - -
RAM Size 2K x 8 2K x 8 2K x 8 2K x 8 2K x 8 1K x 8 1.5K x 8 2K x 8
Voltage - Supply (Vcc/Vdd) 3.8V ~ 5.5V 3.8V ~ 5.5V 3.8V ~ 5.5V 3.8V ~ 5.5V 3.8V ~ 5.5V 3.8V ~ 5.5V 3.8V ~ 5.5V 3.8V ~ 5.5V
Data Converters A/D 16x10b A/D 16x10b A/D 16x10b A/D 16x10b A/D 16x10b A/D 16x10b A/D 16x10b A/D 16x10b SAR
Oscillator Type Internal Internal Internal Internal Internal Internal Internal Internal
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 125°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 64-LQFP 64-LQFP 64-LQFP 64-LQFP 64-LQFP 64-LQFP 64-TQFP 64-LQFP
Supplier Device Package - - - - - - - 64-LQFP (10x10)
