Overview
The ST72C254G2M6 is an 8-bit microcontroller from STMicroelectronics, part of the ST7 family. This microcontroller is designed for a wide range of applications requiring low power consumption and high performance. Although it is currently obsolete and no longer manufactured, it remains relevant for existing projects and maintenance of older systems.
Key Specifications
| Parameter | Value |
|---|---|
| Core | ST7 |
| Program Memory Size | 8 kB |
| Data RAM Size | 256 B |

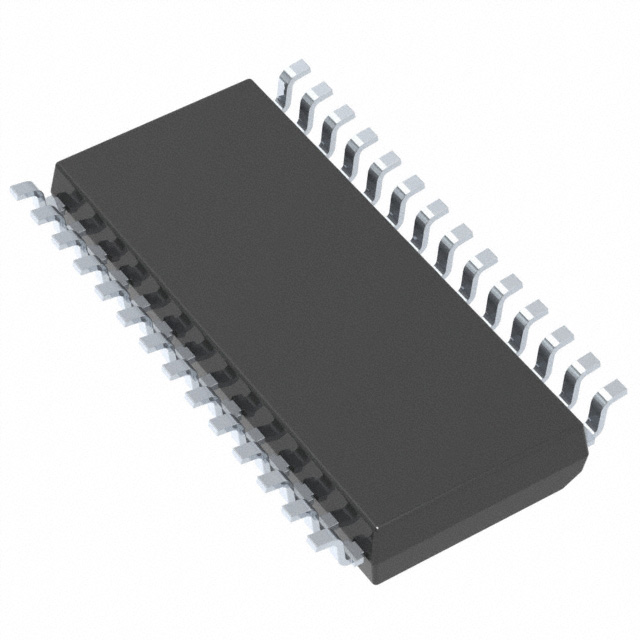

| Package / Case | SOIC-28 |
| Maximum Clock Frequency | 16 MHz |
| ADC Resolution | 8 bit |
| Number of I/Os | 22 |
| Operating Voltage | 3.2V to 5.5VDC |
Key Features
- Single voltage Flash memory
- 8-bit ADC with 6 channels
- 16-bit timers
- SPI (Serial Peripheral Interface)
- Low power consumption
- High performance 8-bit CPU
Applications
The ST72C254G2M6 is suitable for various applications including industrial control systems, consumer electronics, automotive systems, and other embedded systems that require low power and high reliability. It is particularly useful in projects that need simple yet robust microcontroller functionality.
Q & A
- What is the core type of the ST72C254G2M6 microcontroller?
The core type is ST7. - What is the program memory size of the ST72C254G2M6?
The program memory size is 8 kB. - How much data RAM does the ST72C254G2M6 have?
The data RAM size is 256 B. - What is the package type of the ST72C254G2M6?
The package type is SOIC-28. - What is the maximum clock frequency of the ST72C254G2M6?
The maximum clock frequency is 16 MHz. - What is the ADC resolution of the ST72C254G2M6?
The ADC resolution is 8 bits. - How many I/Os does the ST72C254G2M6 have?
The number of I/Os is 22. - What is the operating voltage range of the ST72C254G2M6?
The operating voltage range is 3.2V to 5.5VDC. - Is the ST72C254G2M6 still in production?
No, the ST72C254G2M6 is obsolete and no longer manufactured. - What are some common applications for the ST72C254G2M6?
Common applications include industrial control systems, consumer electronics, and automotive systems.
