Overview

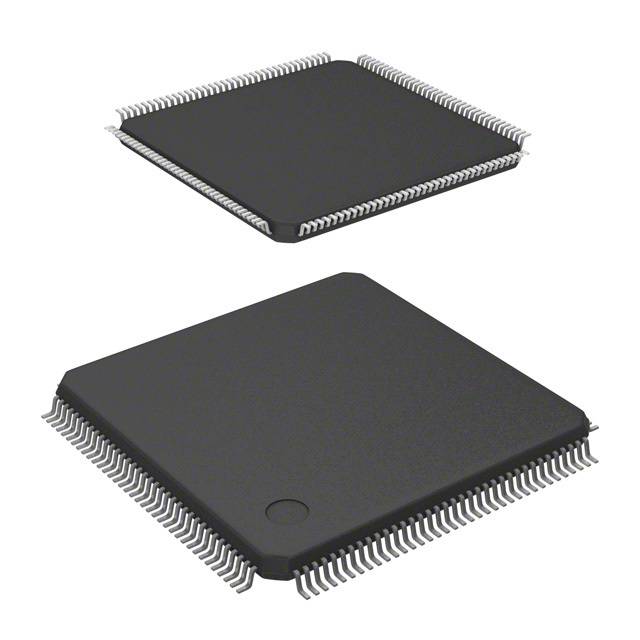

The ST10F273Z4Q3 is a 16-bit microcontroller produced by STMicroelectronics. It is part of the ST10 family, known for its high performance and advanced features. This microcontroller is designed to meet the demands of various industrial and automotive applications, offering a robust set of peripherals and a powerful core.
Key Specifications
| Specification | Value |
|---|---|
| Core | ST10 |
| Program Memory Type | Flash |
| Program Memory Size | Up to 832 Kbytes |
| RAM Size | Up to 68 Kbytes |
| Clock Frequency Max | 64 MHz |
| Data Bus Width | 16 bit |
| A/D Channels Available | 24 |
| Interfaces | CAN, I2C |
| Package Width | 28 mm |
| Package Height | 3.4 mm |
Key Features
- High-performance 16-bit CPU core
- Up to 832 Kbytes of Flash memory and up to 68 Kbytes of RAM
- Integrated MAC unit for advanced mathematical operations
- 24 A/D channels for analog data conversion
- Support for CAN and I2C interfaces for communication
- Operating frequency up to 64 MHz
Applications
The ST10F273Z4Q3 microcontroller is suitable for a variety of applications, including:
- Automotive systems: engine control, transmission control, and other vehicle management systems.
- Industrial control systems: motor control, power management, and automation.
- Medical devices: requiring high precision and reliability.
- Consumer electronics: advanced appliances and devices needing robust microcontroller capabilities.
Q & A
- What is the core type of the ST10F273Z4Q3 microcontroller?
The core type is ST10. - What is the maximum clock frequency of the ST10F273Z4Q3?
The maximum clock frequency is 64 MHz. - How much Flash memory does the ST10F273Z4Q3 have?
The ST10F273Z4Q3 has up to 832 Kbytes of Flash memory. - What interfaces does the ST10F273Z4Q3 support?
The ST10F273Z4Q3 supports CAN and I2C interfaces. - How many A/D channels are available on the ST10F273Z4Q3?
There are 24 A/D channels available. - What is the typical application area for the ST10F273Z4Q3?
The typical application areas include automotive systems, industrial control systems, medical devices, and consumer electronics. - What is the package width of the ST10F273Z4Q3?
The package width is 28 mm. - What is the package height of the ST10F273Z4Q3?
The package height is 3.4 mm. - Does the ST10F273Z4Q3 have an integrated MAC unit?
Yes, the ST10F273Z4Q3 has an integrated MAC unit. - How much RAM does the ST10F273Z4Q3 have?
The ST10F273Z4Q3 has up to 68 Kbytes of RAM.
