Overview

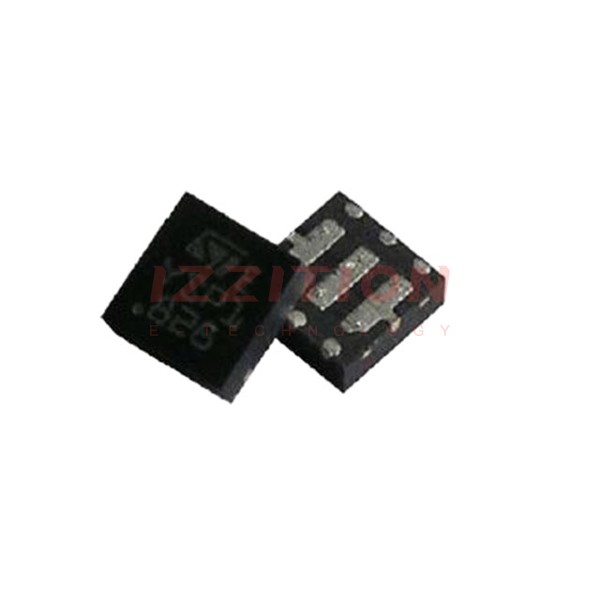

The SPT01-335DEE is a specialized electronic component designed by STMicroelectronics for the protection of 24 V proximity sensors. It integrates reverse polarity and overvoltage protection, ensuring the highest level of compliance with international standards such as IEC 61000-4-2. This device is part of the Transil™ array family, known for its high-performance protection capabilities.
Key Specifications
| Parameter | Value |
|---|---|
| Clamping Voltage (Vc Max) | 46 V |
| No. of Pins | 9 Pins |
| Package Type | QFN |
| Power Dissipation | 100 W |
| Operating Temperature Range | –25 °C to +85 °C |
Key Features
- Reverse polarity protection
- Overvoltage protection
- Compliance with IEC 61000-4-2 standards
- Compact QFN package with 9 pins
- High power dissipation capability of 100 W
- Protection against bus, output power switch, and power supply reverse blocking
- Demagnetization of inductive loads
Applications
The SPT01-335DEE is specifically designed for use in proximity sensor systems, particularly those operating at 24 V. It is suitable for industrial environments where reliable and robust protection against voltage transients and overvoltages is crucial. Common applications include inductive proximity switches, metal body detection systems, and other industrial automation sensors.
Q & A
- What is the primary function of the SPT01-335DEE?
The primary function of the SPT01-335DEE is to provide reverse polarity and overvoltage protection for 24 V proximity sensors. - What standards does the SPT01-335DEE comply with?
The SPT01-335DEE complies with IEC 61000-4-2 standards. - What is the maximum clamping voltage of the SPT01-335DEE?
The maximum clamping voltage is 46 V. - What is the package type of the SPT01-335DEE?
The package type is QFN with 9 pins. - What is the operating temperature range of the SPT01-335DEE?
The operating temperature range is –25 °C to +85 °C. - What kind of loads can the SPT01-335DEE protect against?
The SPT01-335DEE can protect against bus, output power switch, and power supply reverse blocking, as well as demagnetization of inductive loads. - Is the SPT01-335DEE suitable for industrial environments?
Yes, it is designed for use in industrial environments where robust protection is necessary. - Can the SPT01-335DEE be used in other types of sensors?
While it is specifically designed for 24 V proximity sensors, it can be considered for other applications requiring similar protection features. - What is the power dissipation capability of the SPT01-335DEE?
The power dissipation capability is 100 W. - How does the SPT01-335DEE contribute to the overall reliability of a system?
The SPT01-335DEE enhances system reliability by providing comprehensive protection against voltage transients and overvoltages, ensuring the longevity and stable operation of the system.
