Overview
The SPC584B70E1NHC0X is a 32-bit microcontroller (MCU) produced by STMicroelectronics. It is part of the SPC58 4B-Line series, known for its high performance and reliability. This MCU is designed to meet the demanding requirements of automotive and industrial applications, offering a robust set of features and specifications that make it suitable for a wide range of use cases.
Key Specifications
| Parameter | Specification |
|---|---|
| Memory Type | Flash Memory |
| Storage Capacity | 2MB (2M x 8) |
| Speed | 120MHz |
| Voltage - Supply | 1.14V ~ 5.5V |
| Working Temperature | -40°C ~ 125°C (TA) |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |

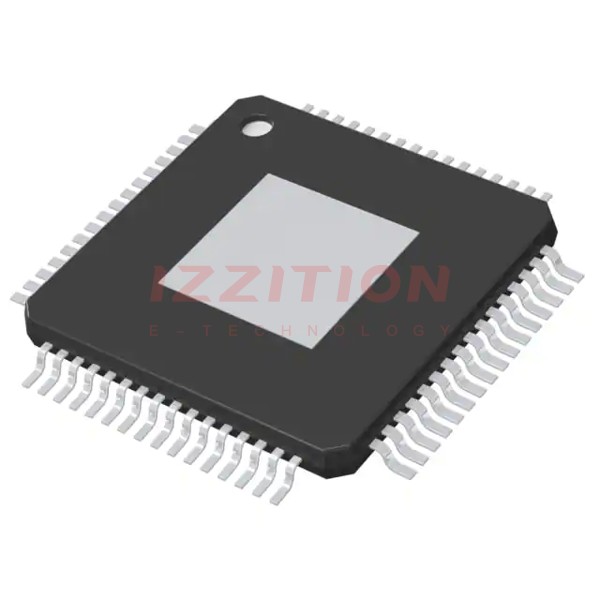

| Package Type | 64ETQFP |
Key Features
- High-performance 32-bit MCU with a 120MHz clock speed.
- 2MB of Flash memory, providing ample storage for complex applications.
- Wide operating voltage range from 1.14V to 5.5V, ensuring flexibility in various power scenarios.
- Extended temperature range from -40°C to 125°C, making it suitable for harsh environments.
- Available in multiple packaging options including Tape & Reel, Cut Tape, and Digi-Reel®.
Applications
The SPC584B70E1NHC0X is primarily designed for automotive and industrial applications. It is well-suited for use in:
- Automotive control units such as engine control, transmission control, and body control modules.
- Industrial control systems, including motor control and automation.
- Safety-critical systems where reliability and performance are paramount.
Q & A
- What is the clock speed of the SPC584B70E1NHC0X MCU?
The clock speed of the SPC584B70E1NHC0X MCU is 120MHz. - How much Flash memory does the SPC584B70E1NHC0X have?
The SPC584B70E1NHC0X has 2MB of Flash memory. - What is the operating voltage range of the SPC584B70E1NHC0X?
The operating voltage range is from 1.14V to 5.5V. - What is the temperature range for the SPC584B70E1NHC0X?
The working temperature range is from -40°C to 125°C (TA). - In what packaging options is the SPC584B70E1NHC0X available?
The SPC584B70E1NHC0X is available in Tape & Reel, Cut Tape, and Digi-Reel® packaging options. - What are the primary applications of the SPC584B70E1NHC0X?
The primary applications include automotive control units and industrial control systems. - Is the SPC584B70E1NHC0X suitable for safety-critical systems?
Yes, the SPC584B70E1NHC0X is suitable for safety-critical systems due to its reliability and performance. - Where can I find the datasheet for the SPC584B70E1NHC0X?
You can find the datasheet on the official STMicroelectronics website or through distributors like Mouser and Digi-Key. - What is the package type of the SPC584B70E1NHC0X?
The package type is 64ETQFP. - Can the SPC584B70E1NHC0X be used in harsh environmental conditions?
Yes, it can be used in harsh environmental conditions due to its extended temperature range.
