Overview
The SPC560D30L1B4E0X is a 32-bit microcontroller from STMicroelectronics, designed specifically for automotive applications. It is part of the SPC560D family, which is built on the Power Architecture. This microcontroller is tailored to meet the demands of advanced automotive systems, including body and gateway applications, as well as electric vehicle (EV) systems. It combines high-performance digital control with advanced analog capabilities, making it a robust solution for modern automotive electronics.
Key Specifications
| Specification | Details |
|---|---|
| Core Architecture | Power Architecture (not Arm Cortex-M0+ as incorrectly stated in some sources, but rather a Power Architecture core) |
| Bit Width | 32-bit |
| Application | Automotive Body and Gateway, Electric Vehicle (EV) systems |
| Operating Voltage | Typically 3.3V or 5V (specific details vary by configuration) |
| Temperature Range | -40°C to 125°C (automotive grade) |

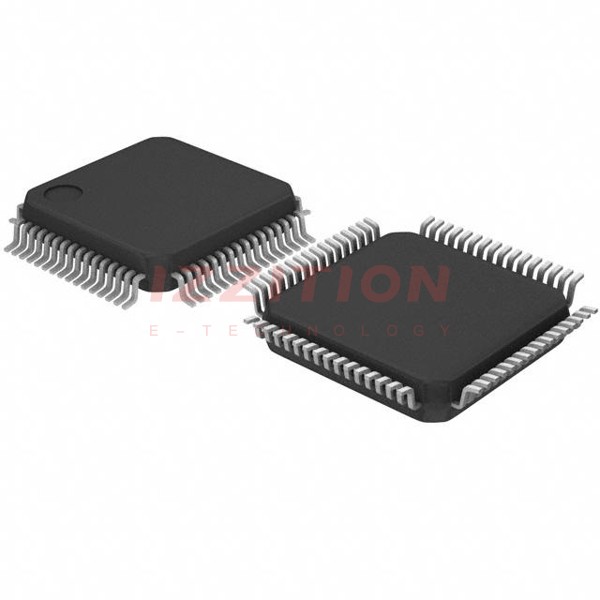

| Package Type | Various packages including LQFP and BGA (specific package details depend on the variant) |
| Memory | Up to 1.5 MB of Flash memory, up to 96 KB of SRAM |
| Interfaces | Multiple interfaces including CAN, LIN, SPI, I2C, UART, etc. |
Key Features
- High-performance digital control and advanced analog capabilities
- Designed for eco-friendly and sustainable technology
- Enhanced security features for secure data processing
- Multiple communication interfaces (CAN, LIN, SPI, I2C, UART)
- Robust temperature range suitable for automotive environments
- Comprehensive development tools and support
Applications
- Automotive body control modules
- Gateway applications in vehicles
- Electric Vehicle (EV) systems
- Advanced driver-assistance systems (ADAS)
- Infotainment and telematics systems
Q & A
- What is the core architecture of the SPC560D30L1B4E0X?
The core architecture is based on Power Architecture. - What are the primary applications of this microcontroller?
The primary applications include automotive body control, gateway applications, and electric vehicle systems. - What is the typical operating voltage of this microcontroller?
The typical operating voltage is 3.3V or 5V, depending on the configuration. - What is the temperature range for this microcontroller?
The temperature range is -40°C to 125°C. - What types of memory does this microcontroller have?
It has up to 1.5 MB of Flash memory and up to 96 KB of SRAM. - What communication interfaces are available on this microcontroller?
Multiple interfaces including CAN, LIN, SPI, I2C, and UART. - Is this microcontroller suitable for electric vehicle applications?
Yes, it is designed to meet the needs of electric vehicle systems. - What is the significance of the 'sustainable technology' label?
The 'sustainable technology' label indicates that the microcontroller is designed with eco-friendly considerations in mind. - What kind of development tools are available for this microcontroller?
Comprehensive development tools and support are provided by STMicroelectronics. - Can this microcontroller be used in advanced driver-assistance systems (ADAS)?
Yes, it can be used in ADAS and other advanced automotive systems.
