Overview

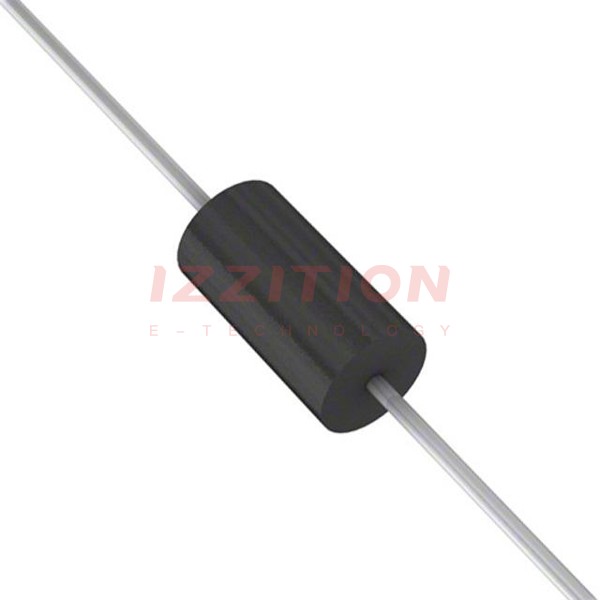

The P6KE6V8ARL is a Transient Voltage Suppressor (TVS) diode manufactured by STMicroelectronics. Although this specific part is listed as obsolete and no longer manufactured, it was designed to provide protection against voltage transients and spikes in electronic circuits. The P6KE series, in general, is known for its high peak pulse power dissipation capabilities, making it suitable for a variety of applications requiring robust voltage protection.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Peak Pulse Power Dissipation | PPPM | 600 | W |
| Breakdown Voltage (Unidirectional) | VBR | 6.8 V | V |
| Stand-Off Voltage | VWM | 5.8 V | V |
| Maximum Reverse Leakage Current | ID | 1000 μA | μA |
| Peak Pulse Current | IPPM | See datasheet for specific values | A |
| Maximum Clamping Voltage | VC | See datasheet for specific values | V |
| Package Type | DO-15 (DO-204AC) | ||
| Maximum Junction Temperature | TJ | 175 °C | °C |
Key Features
- High peak pulse power dissipation of 600 W with a 10/1000 μs waveform.
- Available in unidirectional and bidirectional configurations.
- Glass passivated chip junction for enhanced reliability.
- Molded epoxy over passivated chip with UL 94 V-0 flammability rating.
- Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102.
- RoHS compliant and AEC-Q101 qualified for automotive applications.
Applications
The P6KE6V8ARL and similar TVS diodes are used in various applications to protect sensitive electronics against voltage transients and spikes. These include:
- Protection against inductive load switching and lightning-induced voltage transients.
- ICs, MOSFETs, and signal lines of sensor units in consumer, computer, industrial, automotive, and telecommunication systems.
Q & A
- What is the peak pulse power dissipation of the P6KE6V8ARL?
The peak pulse power dissipation is 600 W with a 10/1000 μs waveform.
- What is the breakdown voltage for the P6KE6V8ARL?
The breakdown voltage (VBR) for the unidirectional type is 6.8 V).
- What package type is used for the P6KE6V8ARL?
The package type is DO-15 (DO-204AC)).
- Is the P6KE6V8ARL RoHS compliant?
- What is the maximum junction temperature for the P6KE6V8ARL?
The maximum junction temperature is 175 °C).
- What are the typical applications for the P6KE6V8ARL?
Typical applications include protection against inductive load switching and lightning-induced voltage transients in various electronic systems).
- Is the P6KE6V8ARL available in bidirectional configuration?
- What is the stand-off voltage for the P6KE6V8ARL?
The stand-off voltage (VWM) is 5.8 V).
- What is the maximum reverse leakage current for the P6KE6V8ARL?
The maximum reverse leakage current (ID) is 1000 μA).
- Is the P6KE6V8ARL AEC-Q101 qualified?
