Overview

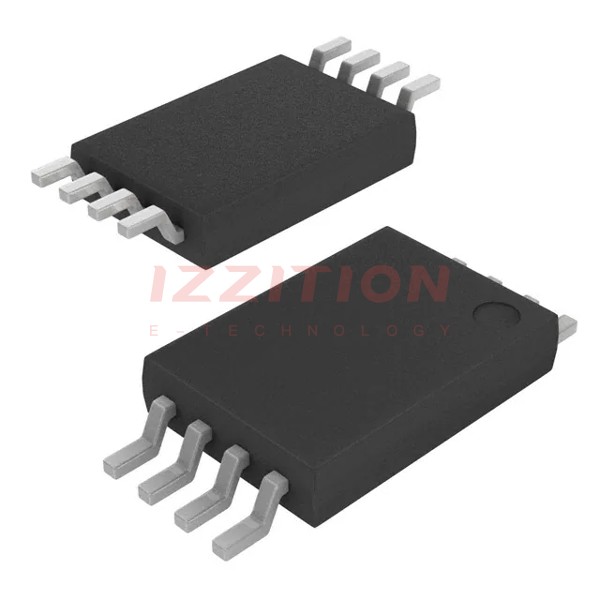

The M34E02-FDW1TP is a 2-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) produced by STMicroelectronics. This memory device is organized as 256 × 8 bits and is designed for serial presence detect (SPD) in DDR1, DDR2, and DDR3 memory modules. It operates with a supply voltage ranging from 1.7 V to 5.5 V and supports a clock frequency of up to 400 kHz. The device is backward compatible with the M34C02 and offers enhanced features such as permanent and reversible software data protection for the lower 128 bytes.
Key Specifications
| Parameter | Value |
|---|---|
| Memory Size | 2 Kbit (256 × 8 bits) |
| Supply Voltage | 1.7 V to 5.5 V |
| Clock Frequency | Up to 400 kHz |
| Operating Temperature | -40 °C to +85 °C |
| Write Cycle Time | Self-timed write cycle |
| Endurance | More than 1 million erase/write cycles |
| Data Retention | More than 40 years |
| Package | TSSOP-8L, UFDFPN8 |
| RoHS Compliance | Ecopack2 (RoHS compliant and Halogen-free) |
Key Features
- Backward compatible with the M34C02
- Permanent and reversible software data protection for lower 128 bytes
- 100 kHz and 400 kHz I2C bus serial interface
- Byte and Page Write (up to 16 bytes)
- Self-timed write cycle
- Noise filtering and Schmitt trigger on bus inputs
- Enhanced ESD/latch-up protection
- ECOPACK® (RoHS compliant) packages
Applications
The M34E02-FDW1TP is recommended for various applications including communications equipment, computers, and peripherals. It is particularly useful in DDR1, DDR2, and DDR3 memory modules for serial presence detect (SPD) functions.
Q & A
- What is the memory size of the M34E02-FDW1TP?
The M34E02-FDW1TP has a memory size of 2 Kbit, organized as 256 × 8 bits. - What is the operating voltage range of the M34E02-FDW1TP?
The device operates with a supply voltage ranging from 1.7 V to 5.5 V. - What is the maximum clock frequency supported by the M34E02-FDW1TP?
The device supports a clock frequency of up to 400 kHz. - What is the operating temperature range of the M34E02-FDW1TP?
The device operates over an ambient temperature range of -40 °C to +85 °C. - How many erase/write cycles can the M34E02-FDW1TP endure?
The device can endure more than 1 million erase/write cycles. - What is the data retention period of the M34E02-FDW1TP?
The device has a data retention period of more than 40 years. - Is the M34E02-FDW1TP backward compatible with any other models?
Yes, it is backward compatible with the M34C02. - What kind of protection does the M34E02-FDW1TP offer for its data?
The device offers permanent and reversible software data protection for the lower 128 bytes. - What types of packages are available for the M34E02-FDW1TP?
The device is available in TSSOP-8L and UFDFPN8 packages. - Is the M34E02-FDW1TP RoHS compliant?
Yes, the device is RoHS compliant and comes in ECOPACK® (RoHS compliant and Halogen-free) packages.
