Overview

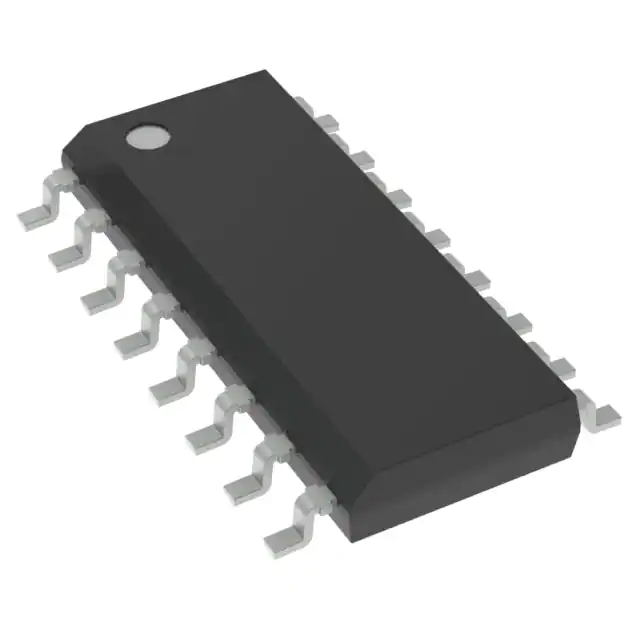

The HCF4094YM013TR is an 8-stage serial shift register with a storage latch associated with each stage, produced by STMicroelectronics. This integrated circuit is fabricated in metal oxide semiconductor technology and is available in an SO-16 package. It is designed to transfer data from the serial input to parallel buffered 3-state outputs, making it suitable for various applications requiring data storage and transfer.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage (VDD) | 3 to 20 | V |
| Operating Temperature | -55 to +125 | °C |
| Maximum Clock Frequency | 1.25 to 6 MHz (depending on VDD) | MHz |
| Propagation Delay Time (Clock to Serial Output QS) | 95 to 600 ns (depending on VDD) | ns |
| Propagation Delay Time (Clock to Parallel Output) | 135 to 840 ns (depending on VDD) | ns |
| Quiescent Current | 0.04 to 3 mA (depending on VDD) | mA |
| Input Leakage Current | ±10 nA | nA |
| Output Drive Current | -1.36 to -6.8 mA (depending on VDD) | mA |
| Package Type | SO-16 |
Key Features
- 8-stage serial shift register with storage latch associated with each stage.
- 3-state parallel outputs for connection to common bus lines.
- Separate serial outputs synchronous to both positive and negative clock edges for cascading.
- Medium speed operation up to 6 MHz at 15 V.
- Standardized symmetrical output characteristics.
- ESD performance: HBM 1 kV, MM 200 V, CDM 1 kV.
- Automotive grade available with qualification and characterization according to AEC Q100 and Q003 or equivalent.
Applications
- Automotive systems.
- Industrial control systems.
- Computer peripherals.
- Consumer electronics.
Q & A
- What is the HCF4094YM013TR?
The HCF4094YM013TR is an 8-stage serial shift register with a storage latch associated with each stage, produced by STMicroelectronics.
- What is the operating temperature range of the HCF4094YM013TR?
The operating temperature range is -55 to +125 °C.
- What is the maximum clock frequency for the HCF4094YM013TR?
The maximum clock frequency ranges from 1.25 to 6 MHz, depending on the supply voltage (VDD).
- What type of package is the HCF4094YM013TR available in?
The HCF4094YM013TR is available in an SO-16 package.
- What are the key applications of the HCF4094YM013TR?
The key applications include automotive systems, industrial control systems, computer peripherals, and consumer electronics.
- How does the HCF4094YM013TR handle data transfer?
The HCF4094YM013TR transfers data from the serial input to parallel buffered 3-state outputs, with data being shifted on positive clock transitions and stored when the STROBE input is high.
- What are the ESD performance specifications of the HCF4094YM013TR?
The ESD performance specifications are HBM 1 kV, MM 200 V, and CDM 1 kV.
- Can the HCF4094YM013TR be cascaded with other devices?
- What is the quiescent current of the HCF4094YM013TR?
The quiescent current ranges from 0.04 to 3 mA, depending on the supply voltage (VDD).
- Is the HCF4094YM013TR automotive grade qualified?
