Overview

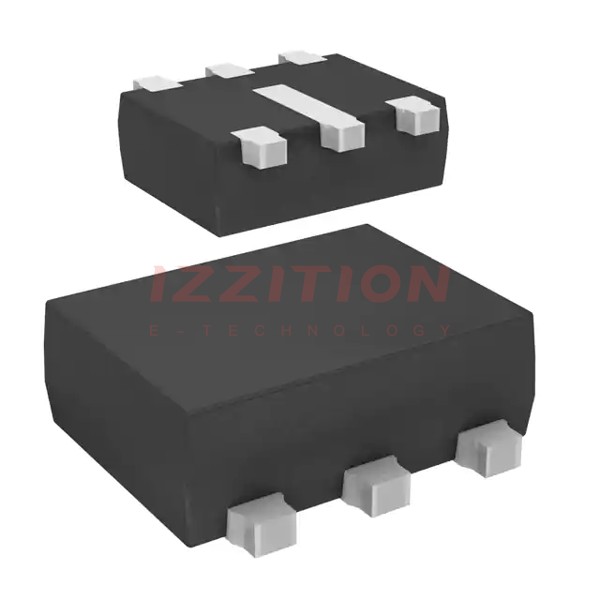

The ESDA6V1P6 is a monolithic array designed by STMicroelectronics to provide robust ESD (Electrostatic Discharge) protection for up to 4 lines. This device is particularly suited for applications where board space is limited and high-density board designs are required. It offers high ESD protection levels, low leakage current, and minimal impact on signal integrity due to its ultralow capacitance and ultrawide bandwidth.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Breakdown Voltage (VBR) | 6.1 - 7.2 | V |
| Leakage Current (IR) | < 500 nA | nA |
| Peak Pulse Power Dissipation (PPP) | 150 | W |
| Peak Pulse Voltage (VPP) | ±15 kV (air discharge), ±8 kV (contact discharge) | kV |
| Operating Junction Temperature Range (Tj) | -40 to +150 | °C |
| Storage Temperature Range (Tstg) | -55 to +150 | °C |
| Package Type | SOT-666IP | |
| Number of Protected Lines | 4 |
Key Features
- High ESD protection level: Complies with IEC 61000-4-2 level 4 and MIL STD 883E - method 3015-7: Class3.
- Low leakage current: Less than 500 nA.
- Ultralow capacitance and ultrawide bandwidth: Ensures minimal impact on signal integrity.
- Compact package: SOT-666IP, ideal for high-density board designs.
- High integration: Protects up to 4 lines against ESD transients.
Applications
- Computers and servers
- Printers
- Communication systems and cellular phones
- Video equipment
- Any susceptible equipment requiring ESD and EOS transient overvoltage protection.
Q & A
- What is the primary function of the ESDA6V1P6?
The primary function of the ESDA6V1P6 is to provide ESD protection for up to 4 lines in electronic devices.
- What is the breakdown voltage range of the ESDA6V1P6?
The breakdown voltage (VBR) of the ESDA6V1P6 ranges from 6.1 V to 7.2 V.
- What is the maximum leakage current of the ESDA6V1P6?
The maximum leakage current (IR) of the ESDA6V1P6 is less than 500 nA.
- What are the ESD protection levels that the ESDA6V1P6 complies with?
The ESDA6V1P6 complies with IEC 61000-4-2 level 4 and MIL STD 883E - method 3015-7: Class3.
- What is the operating junction temperature range of the ESDA6V1P6?
The operating junction temperature range (Tj) of the ESDA6V1P6 is from -40°C to +150°C.
- What package type is the ESDA6V1P6 available in?
The ESDA6V1P6 is available in the SOT-666IP package type.
- How many lines can the ESDA6V1P6 protect against ESD transients?
The ESDA6V1P6 can protect up to 4 lines against ESD transients.
- What are some common applications of the ESDA6V1P6?
Common applications include computers, servers, printers, communication systems, cellular phones, and video equipment.
- What is the peak pulse power dissipation of the ESDA6V1P6?
The peak pulse power dissipation (PPP) of the ESDA6V1P6 is 150 W.
- Does the ESDA6V1P6 meet any environmental compliance standards?
Yes, the ESDA6V1P6 is available in ECOPACK packages that meet various environmental compliance standards.
