BUX87
  • Share:

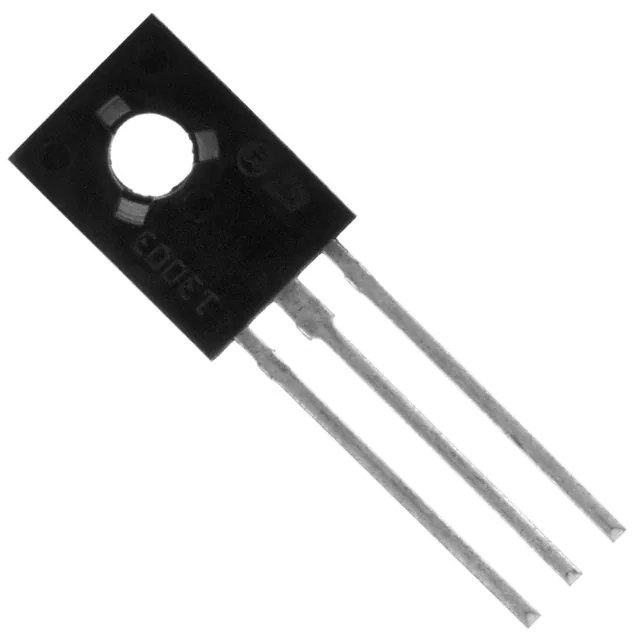

STMicroelectronics BUX87

Manufacturer No:
BUX87
Manufacturer:
STMicroelectronics
Package:
Tube
Description:
TRANS NPN 450V 0.5A SOT32-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUX87 is a high-voltage NPN power transistor manufactured by STMicroelectronics. This transistor is designed for high-power applications and is known for its robust performance and reliability. It is packaged in a 3-pin SOT-32 through-hole configuration, making it suitable for a variety of industrial and consumer electronics.

Key Specifications

ParameterValue
Transistor TypeNPN
Collector-Base Voltage (VCB)450 V
Collector-Emitter Voltage (VCE)450 V
Collector Current (IC)500 mA
Power Dissipation (PD)40 W
Transition Frequency (fT)20 MHz
Package TypeSOT-32-3 (Through Hole)

Key Features

  • High collector-base and collector-emitter voltage ratings of 450 V, making it suitable for high-voltage applications.
  • Collector current of 500 mA and power dissipation of 40 W, ensuring robust performance in demanding environments.
  • Transition frequency of 20 MHz, suitable for high-frequency applications.
  • Through-hole SOT-32-3 package for easy mounting and reliability.
  • Compliant with ROHS standards, ensuring environmental sustainability.

Applications

The BUX87 transistor is versatile and can be used in a variety of applications, including:

  • Power amplifiers and switching circuits.
  • High-voltage power supplies and converters.
  • Industrial control systems and motor control circuits.
  • Automotive electronics and other high-reliability applications.

Q & A

  1. What is the collector-base voltage rating of the BUX87 transistor?
    The collector-base voltage rating of the BUX87 transistor is 450 V.
  2. What is the maximum collector current of the BUX87 transistor?
    The maximum collector current of the BUX87 transistor is 500 mA.
  3. What is the power dissipation capacity of the BUX87 transistor?
    The power dissipation capacity of the BUX87 transistor is 40 W.
  4. What is the transition frequency of the BUX87 transistor?
    The transition frequency of the BUX87 transistor is 20 MHz.
  5. In what package is the BUX87 transistor available?
    The BUX87 transistor is available in a 3-pin SOT-32 through-hole package.
  6. Is the BUX87 transistor ROHS compliant?
    Yes, the BUX87 transistor is ROHS compliant.
  7. What are some common applications of the BUX87 transistor?
    The BUX87 transistor is commonly used in power amplifiers, high-voltage power supplies, industrial control systems, and automotive electronics.
  8. Where can I find detailed specifications for the BUX87 transistor?
    Detailed specifications for the BUX87 transistor can be found in the datasheet available on STMicroelectronics' official website, Digi-Key, Mouser Electronics, and other authorized distributors.
  9. What is the typical use case for the BUX87 transistor in industrial settings?
    In industrial settings, the BUX87 transistor is often used in motor control circuits and high-voltage power supplies due to its high voltage and current handling capabilities.
  10. Can the BUX87 transistor be used in high-frequency applications?
    Yes, the BUX87 transistor can be used in high-frequency applications due to its transition frequency of 20 MHz.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):450 V
Vce Saturation (Max) @ Ib, Ic:1V @ 20mA, 200mA
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:12 @ 40mA, 5V
Power - Max:40 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-225AA, TO-126-3
Supplier Device Package:SOT-32-3
0 Remaining View Similar

In Stock

$1.20
451

Please send RFQ , we will respond immediately.

Similar Products

Part Number BUX87 BUX85
Manufacturer STMicroelectronics onsemi
Product Status Active Obsolete
Transistor Type NPN NPN
Current - Collector (Ic) (Max) 500 mA 2 A
Voltage - Collector Emitter Breakdown (Max) 450 V 450 V
Vce Saturation (Max) @ Ib, Ic 1V @ 20mA, 200mA 1V @ 200mA, 1A
Current - Collector Cutoff (Max) 100µA 200µA
DC Current Gain (hFE) (Min) @ Ic, Vce 12 @ 40mA, 5V 30 @ 100mA, 5V
Power - Max 40 W 50 W
Frequency - Transition 20MHz 4MHz
Operating Temperature 150°C (TJ) -65°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole
Package / Case TO-225AA, TO-126-3 TO-220-3
Supplier Device Package SOT-32-3 TO-220
