Overview
The LM5100AMRX/NOPB is a high-voltage gate driver IC manufactured by National Semiconductor, now part of Texas Instruments. Designed for high-performance applications, this product falls under the category of gate drivers, which are essential for controlling power MOSFETs and IGBTs in various power electronics systems. The LM5100AMRX/NOPB is positioned as a reliable solution for industrial and automotive applications, targeting engineers and designers working on motor drives, power supplies, and inverters. Its unique selling points include high-voltage capability, robust performance, and ease of integration, making it a competitive choice in the market.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supply Voltage | 10 to 20 | V | Operating range |
| Output Current | 1.5 | A | Peak output current |
| Rise Time | 15 | ns | Typical value |
| Fall Time | 15 | ns | Typical value |
| Operating Temperature | -40 to 125 | °C | Industrial range |

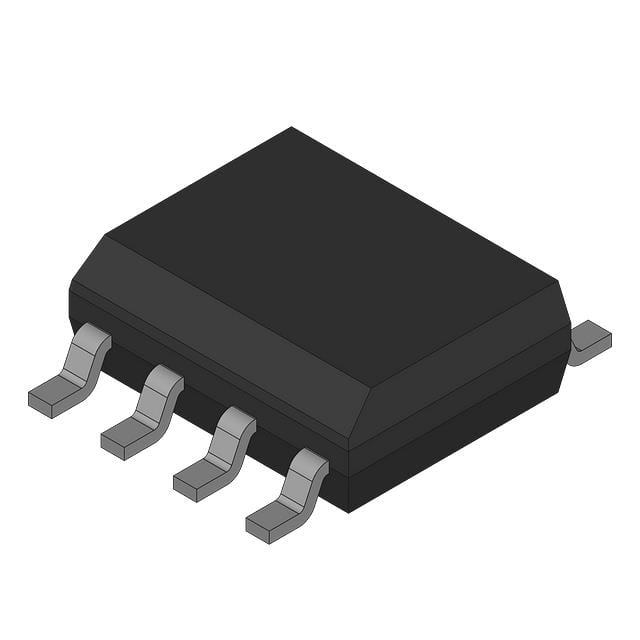

| Package | SOIC-8 | - | Surface mount |
| Propagation Delay | 25 | ns | Typical value |
| Input Logic Compatibility | TTL, CMOS | - | Wide compatibility |
Key Features
- High-Voltage Capability: Supports high-voltage applications up to 100V, ensuring robust performance in demanding environments.
- Fast Switching: Features low rise and fall times (15 ns typical), enabling efficient power switching.
- Wide Input Compatibility: Compatible with TTL and CMOS logic levels, providing flexibility in system design.
- Robust Protection: Includes under-voltage lockout (UVLO) to prevent malfunction during low supply voltage conditions.
- Compact Package: Available in an SOIC-8 package, ideal for space-constrained applications.
Applications
The LM5100AMRX/NOPB is widely used in various high-performance applications, including:
- Motor Drives: Provides precise control of MOSFETs and IGBTs in motor drive systems, enhancing efficiency and reliability.
- Power Supplies: Enables efficient switching in switch-mode power supplies (SMPS), improving power conversion efficiency.
- Inverters: Used in DC-AC inverters for renewable energy systems, such as solar inverters and wind turbines.
- Industrial Automation: Supports automation systems requiring high-speed and high-voltage switching.
- Automotive Electronics: Suitable for electric vehicle (EV) power systems, including battery management and motor control.
Q & A
1. What is the maximum supply voltage for the LM5100AMRX/NOPB?
The maximum supply voltage is 20V.
2. Can this driver be used with IGBTs?
Yes, the LM5100AMRX/NOPB is compatible with both MOSFETs and IGBTs.
3. What is the typical rise time of the driver?
The typical rise time is 15 ns.
4. Is the LM5100AMRX/NOPB suitable for automotive applications?
Yes, it is designed to meet the requirements of automotive electronics, including EVs.
5. Does it include under-voltage lockout (UVLO)?
Yes, the driver features UVLO protection to ensure safe operation.
6. What package does the LM5100AMRX/NOPB come in?
It is available in an SOIC-8 package.
7. What is the operating temperature range?
The operating temperature range is -40°C to 125°C.
8. Is it compatible with TTL logic levels?
Yes, it is compatible with both TTL and CMOS logic levels.
9. What is the peak output current?
The peak output current is 1.5A.
10. Can it be used in solar inverters?
Yes, the LM5100AMRX/NOPB is suitable for use in solar inverters and other renewable energy systems.
