Overview

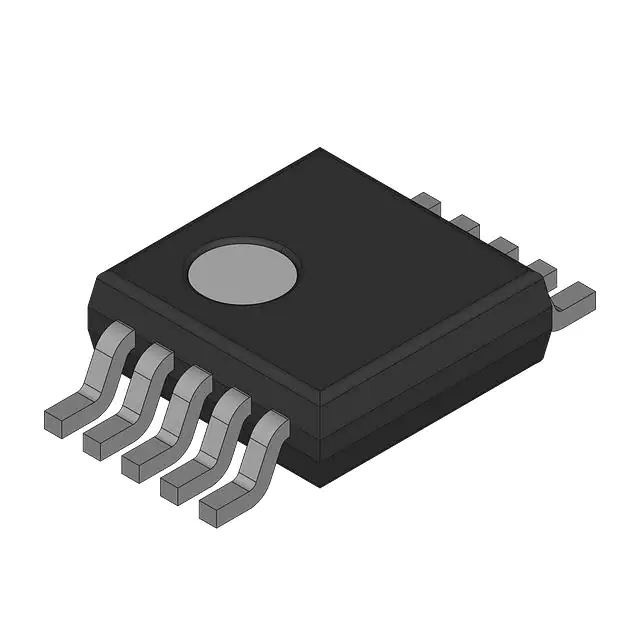

The DAC122S085CIMM-NS is a high-precision, 12-bit digital-to-analog converter (DAC) manufactured by National Semiconductor. This product is designed for applications requiring accurate analog signal generation with low power consumption. Its compact form factor and robust performance make it suitable for a wide range of industrial and consumer electronics applications. The DAC122S085CIMM-NS stands out for its high resolution, low noise, and excellent linearity, making it a competitive choice for precision signal processing tasks.
Key Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Resolution | 12 | bits | |
| Number of Channels | 1 | ||
| Interface Type | SPI | Serial Peripheral Interface | |
| Supply Voltage | 2.7 to 5.5 | V | |
| Operating Temperature | -40 to 105 | °C | |
| Package | MSOP-8 | ||
| DNL (Differential Non-Linearity) | ±1 | LSB | |
| INL (Integral Non-Linearity) | ±1 | LSB | |
| Power Consumption | 0.5 | mW | Typical |
| Output Type | Voltage |
Key Features
- High Precision: 12-bit resolution ensures accurate analog signal generation.
- Low Power Consumption: Ideal for battery-powered applications.
- Compact Design: MSOP-8 package saves board space.
- Wide Supply Voltage Range: Operates from 2.7V to 5.5V, enhancing versatility.
- Robust Performance: Excellent linearity and low noise for reliable operation.
Applications
The DAC122S085CIMM-NS is widely used in various fields, including:
- Industrial Automation: Precision control systems and signal conditioning.
- Consumer Electronics: Audio equipment, portable devices, and instrumentation.
- Automotive Electronics: Sensor calibration and control modules.
- Medical Devices: High-accuracy signal generation for diagnostic equipment.
Q & A
1. What is the resolution of the DAC122S085CIMM-NS?
The DAC122S085CIMM-NS has a resolution of 12 bits.
2. What is the supply voltage range for this DAC?
The supply voltage range is 2.7V to 5.5V.
3. What interface does the DAC122S085CIMM-NS use?
It uses the SPI (Serial Peripheral Interface) for communication.
4. What is the operating temperature range?
The operating temperature range is -40°C to 105°C.
5. How many channels does this DAC have?
It has a single channel.
6. What is the typical power consumption?
The typical power consumption is 0.5 mW.
7. What is the package type of the DAC122S085CIMM-NS?
It comes in an MSOP-8 package.
8. What are the DNL and INL specifications?
The DNL and INL are both ±1 LSB.
9. Is this DAC suitable for battery-powered applications?
Yes, its low power consumption makes it ideal for battery-powered applications.
10. What are the typical applications of the DAC122S085CIMM-NS?
Typical applications include industrial automation, consumer electronics, automotive electronics, and medical devices.
