Overview

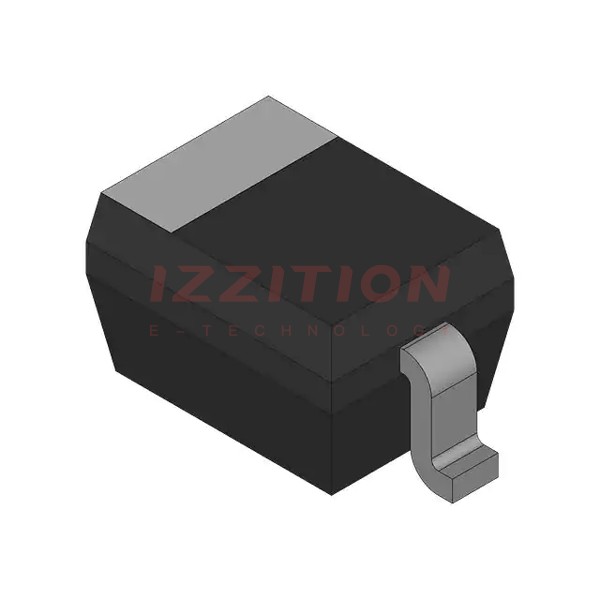

The PDZ7.5B_R1_00001 is a single zener diode manufactured by Panjit International Inc. This component is designed as a low-power general purpose voltage regulator diode, packaged in a small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. It is widely used in various electronic devices to regulate voltage and provide stability in circuit designs.
Key Specifications
| Specification | Value |
|---|---|
| Voltage - Zener (Nom) (Vz) | 7.5 V |
| Tolerance | ±2.13% |
| Power - Max. | 400 mW |
| Impedance (Max) (Zzt) | 10 Ohms |
| Current - Reverse Leakage @ Vr | 500 nA |
| Package | SOD323 (SC-76) |
Key Features
- Low power consumption with a maximum power rating of 400 mW.
- Small SOD323 (SC-76) SMD package, ideal for compact circuit designs.
- Nominal zener voltage of 7.5 V with a tolerance of ±2.13%.
- Low impedance of 10 Ohms, ensuring efficient voltage regulation.
- Low reverse leakage current of 500 nA, minimizing power loss.
Applications
The PDZ7.5B_R1_00001 zener diode is versatile and can be used in a wide range of electronic devices, including:
- Computers and peripherals
- Smartphones and mobile devices
- Televisions and other consumer electronics
- Automotive systems
- Medical devices
Q & A
- What is the nominal zener voltage of the PDZ7.5B_R1_00001 diode?
The nominal zener voltage is 7.5 V. - What is the maximum power rating of this diode?
The maximum power rating is 400 mW. - What is the package type of the PDZ7.5B_R1_00001 diode?
The package type is SOD323 (SC-76) SMD. - What is the tolerance of the zener voltage?
The tolerance is ±2.13%. - What is the maximum impedance (Zzt) of this diode?
The maximum impedance is 10 Ohms. - What is the reverse leakage current at Vr?
The reverse leakage current is 500 nA. - In what types of devices is this diode commonly used?
This diode is commonly used in computers, smartphones, televisions, automotive systems, and medical devices. - Why is the SOD323 package beneficial?
The SOD323 package is beneficial due to its small size, making it ideal for compact circuit designs. - How does the low impedance of this diode affect its performance?
The low impedance ensures efficient voltage regulation and minimizes power loss. - What are the key advantages of using the PDZ7.5B_R1_00001 diode?
The key advantages include low power consumption, small package size, precise voltage regulation, and low reverse leakage current.
