Overview

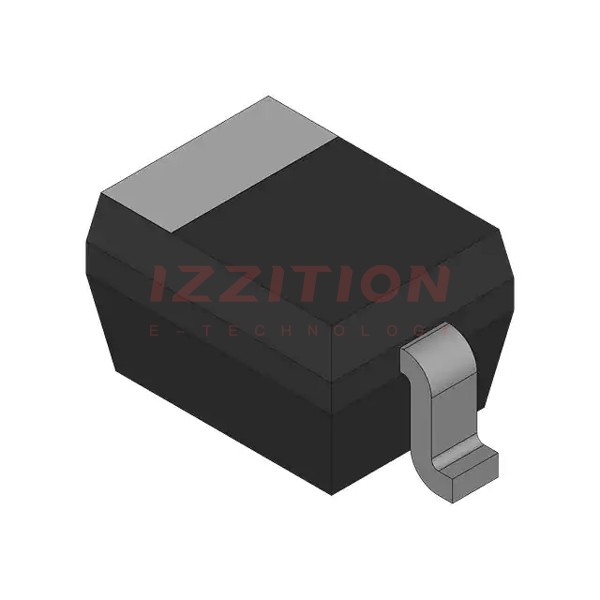

The PDZ7.5B-AU_R1_000A1 is a surface mount silicon zener diode produced by Panjit International Inc. This component is part of the PDZ series, which offers a range of zener voltages from 4.7V to 36V. The PDZ7.5B-AU is specifically designed for voltage regulation and is known for its high reliability and compact design.
Key Specifications
| Parameter | Symbol | Limits | Unit |
|---|---|---|---|
| Maximum Power Dissipation at 25°C | PD | 400 | mW |
| Operating Junction and Storage Temperature Range | TJ | -55 to +150 | °C |
| Thermal Resistance, Junction to Ambient | RθJA | 650 | °C/W |
| Nominal Zener Voltage | VZ @ IZT | 7.28 - 7.62 V | V |
| Max. Zener Impedance | ZZT @ IZT | 50 Ω | Ω |
| Max Reverse Leakage Current | IR @ VR | 0.5 μA | μA |
| Case Type | SOD-323, Molded Plastic | ||
| Terminals | Solderable per MIL-STD-750, Method 2026 | ||
| Approximate Weight | 0.00014 ounces, 0.0041 grams |
Key Features
- Planar Die construction for high reliability and stability.
- 400 mW power dissipation, suitable for various voltage regulation applications.
- Ideally suited for automated assembly processes due to its surface mount design.
- Lead-free in compliance with EU RoHS2.0 (2011/65/EU & 2015/865/EU directive).
- Green molding compound as per IEC61249 Std., halogen-free.
- AEC-Q101 qualified, ensuring high quality and reliability for automotive applications.
Applications
- Voltage regulation in electronic circuits.
- Overvoltage protection in various electronic devices.
- Automotive electronics due to AEC-Q101 qualification.
- General purpose voltage regulator diodes in consumer electronics.
- Industrial control systems requiring stable voltage regulation.
Q & A
- What is the maximum power dissipation of the PDZ7.5B-AU?
The maximum power dissipation is 400 mW at 25°C.
- What is the operating temperature range of the PDZ7.5B-AU?
The operating junction and storage temperature range is -55°C to +150°C.
- What is the nominal zener voltage of the PDZ7.5B-AU?
The nominal zener voltage is between 7.28 V and 7.62 V.
- Is the PDZ7.5B-AU lead-free?
- What is the package type of the PDZ7.5B-AU?
The package type is SOD-323, molded plastic.
- Is the PDZ7.5B-AU suitable for automated assembly processes?
- What is the thermal resistance of the PDZ7.5B-AU?
The thermal resistance, junction to ambient, is 650 °C/W.
- What are the typical applications of the PDZ7.5B-AU?
Typical applications include voltage regulation, overvoltage protection, and use in automotive and industrial electronics.
- Is the PDZ7.5B-AU AEC-Q101 qualified?
- What is the approximate weight of the PDZ7.5B-AU?
The approximate weight is 0.00014 ounces or 0.0041 grams.
