Overview

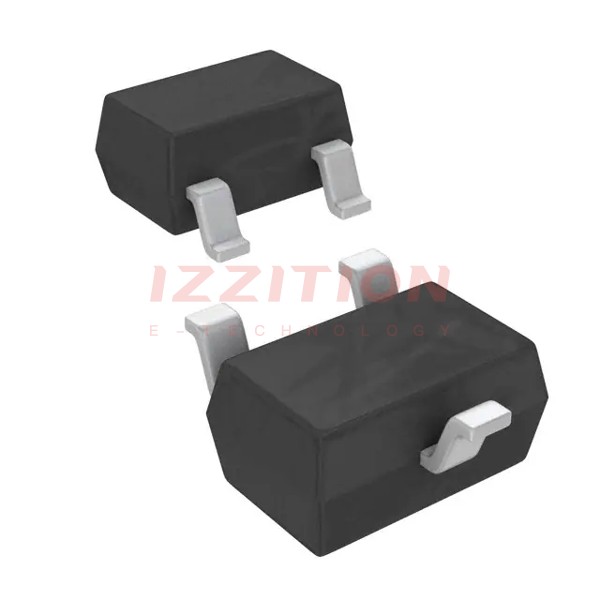

The BZX84B6V2W_R1_00001 is a surface mount silicon Zener diode produced by Panjit International Inc. This component is designed to provide voltage regulation and protection in various electronic circuits. It is part of the BZX84 series, known for its reliability and performance in stabilizing voltages.
Key Specifications
| Part Number | BZX84B6V2W_R1_00001 |
|---|---|
| Manufacturer/Brand | Panjit International Inc. |
| Product Description | DIODE ZENER 6.2V 200MW SOT-323 |
| Package Type | SOT-323 |
| Power Dissipation (P D) | 200 mW |
| Zener Voltage V Z (Min.) | 6.08 V |
| Zener Voltage V Z (Max.) | 6.32 V |
| I Z @ V Z | 5 mA |
| Operating Temperature (Tj) | -65°C to 150°C |
| Mounting Style | Surface mount |
| RoHS Status | Yes |
Key Features
- Low Power Consumption: The BZX84B6V2W_R1_00001 has a power dissipation of 200 mW, making it suitable for applications where energy efficiency is crucial.
- Precision Voltage Regulation: With a tight tolerance on the Zener voltage (6.08 V to 6.32 V), this diode provides stable voltage regulation.
- Compact Package: The SOT-323 package is small and ideal for space-constrained designs.
- RoHS Compliance: This component is RoHS compliant, ensuring it meets environmental standards.
- Wide Operating Temperature Range: The diode can operate over a temperature range of -65°C to 150°C, making it versatile for various environments.
Applications
- Voltage Regulation: Used in voltage regulator circuits to stabilize output voltages.
- Overvoltage Protection: Acts as a protective device against voltage spikes and surges.
- Signal Clamping: Can be used to clamp signal voltages to a specific level.
- Power Supplies: Often used in power supply circuits to ensure stable output voltages.
- Consumer Electronics: Found in various consumer electronic devices such as audio equipment, televisions, and computers.
Q & A
- What is the primary function of the BZX84B6V2W_R1_00001 Zener diode?
The primary function is to provide voltage regulation and protection in electronic circuits.
- What is the Zener voltage range for this diode?
The Zener voltage range is from 6.08 V to 6.32 V.
- What is the power dissipation of the BZX84B6V2W_R1_00001?
The power dissipation is 200 mW.
- What package type does this diode use?
The package type is SOT-323.
- Is the BZX84B6V2W_R1_00001 RoHS compliant?
Yes, it is RoHS compliant.
- What is the operating temperature range for this diode?
The operating temperature range is from -65°C to 150°C.
- How is the BZX84B6V2W_R1_00001 typically used in power supplies?
It is used to ensure stable output voltages and protect against voltage spikes.
- Can the BZX84B6V2W_R1_00001 be used for signal clamping?
Yes, it can be used to clamp signal voltages to a specific level.
- What are some common applications of the BZX84B6V2W_R1_00001?
Common applications include voltage regulation, overvoltage protection, signal clamping, and use in power supplies and consumer electronics.
- How does the BZX84B6V2W_R1_00001 contribute to energy efficiency in circuits?
It contributes to energy efficiency by having low power consumption of 200 mW.
