Overview

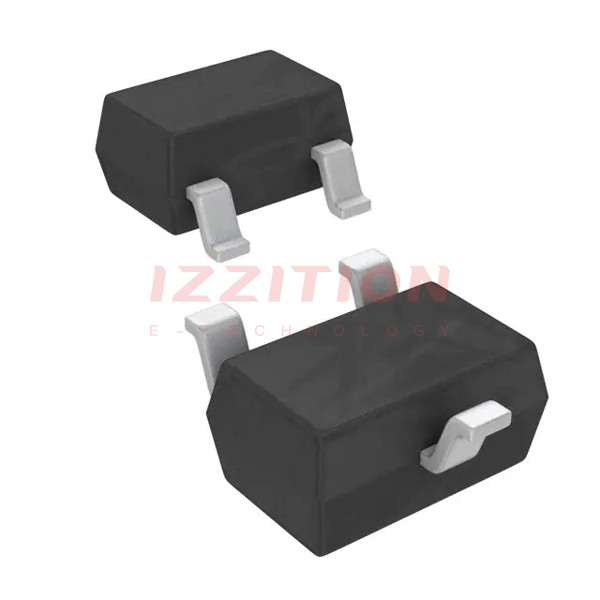

The BZX84B12W-AU_R1_000A1 is a surface-mount Zener diode produced by Panjit International Inc. This component is part of the BZX84B series, which is known for its high reliability and suitability for various electronic applications. The BZX84B12W-AU_R1_000A1 is specifically designed to provide voltage regulation and protection in electronic circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Nominal Zener Voltage | 12 V |
| Power Dissipation | 200 mW |
| Maximum Zener Impedance | 25 Ω at 5 mA |
| Maximum Reverse Leakage Current | 1.0 μA at 10 V |
| Package Type | SOT-323 |
| Operating Temperature Range | -55°C to +150°C |
| Compliance | Lead-free, RoHS compliant, and AEC-Q101 qualified |
Key Features
- Planar die construction for high reliability and stability.
- Zener voltage of 12 V with a tolerance of ±2%.
- Power dissipation of 200 mW, suitable for various applications.
- Ideally suited for automated assembly processes.
- Lead-free and compliant with EU RoHS 2011/65/EU directive.
- Green molding compound as per IEC61249 standard (halogen-free).
- AEC-Q101 qualified for automotive applications.
Applications
The BZX84B12W-AU_R1_000A1 Zener diode is versatile and can be used in a variety of applications, including:
- Voltage regulation and stabilization in power supplies.
- Overvoltage protection in electronic circuits.
- Signal clipping and clamping in audio and video circuits.
- Automotive electronics due to its AEC-Q101 qualification.
- General-purpose voltage reference applications.
Q & A
- What is the nominal Zener voltage of the BZX84B12W-AU_R1_000A1?
The nominal Zener voltage is 12 V. - What is the power dissipation of this Zener diode?
The power dissipation is 200 mW. - What is the package type of the BZX84B12W-AU_R1_000A1?
The package type is SOT-323. - Is the BZX84B12W-AU_R1_000A1 lead-free and RoHS compliant?
Yes, it is lead-free and compliant with EU RoHS 2011/65/EU directive. - What is the operating temperature range of this Zener diode?
The operating temperature range is -55°C to +150°C. - Is the BZX84B12W-AU_R1_000A1 suitable for automotive applications?
Yes, it is AEC-Q101 qualified. - What are some common applications of the BZX84B12W-AU_R1_000A1?
It is used in voltage regulation, overvoltage protection, signal clipping, and as a voltage reference. - What is the maximum reverse leakage current of the BZX84B12W-AU_R1_000A1?
The maximum reverse leakage current is 1.0 μA at 10 V. - Is the BZX84B12W-AU_R1_000A1 suitable for automated assembly processes?
Yes, it is ideally suited for automated assembly processes. - What is the tolerance of the Zener voltage for the BZX84B12W-AU_R1_000A1?
The tolerance is ±2%.
