Overview

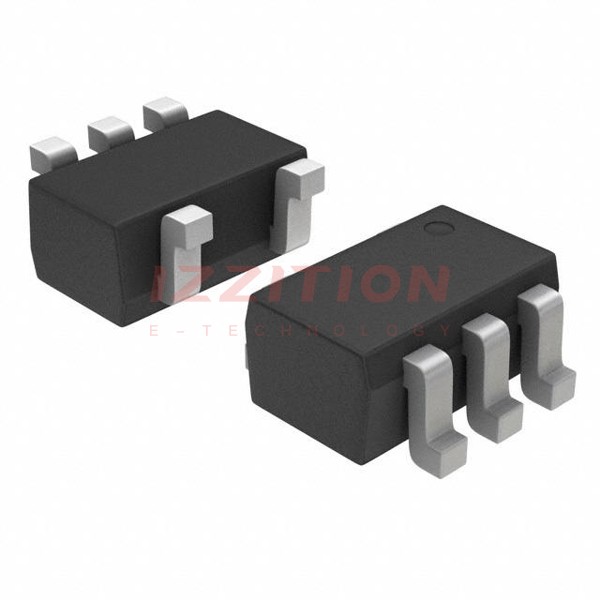

The NL17SZ125DFT2G is a high-performance non-inverting 3-state buffer produced by onsemi. This component operates within a wide voltage range of 1.65 V to 5.5 V, making it versatile for various applications. It is designed to provide extremely high speed, with a propagation delay of 2.6 ns (typical) at VCC = 5 V. The device is available in several compact packages, including SC-88A (SOT-353), which is Pb-free and RoHS compliant.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| VCC (DC Supply Voltage) | 1.65 to 5.5 | V |
| VIN (DC Input Voltage) | −0.5 to +6.5 | V |
| VOUT (DC Output Voltage) | −0.5 to VCC + 0.5 | V |
| tPD (Propagation Delay) | 2.6 ns (typical) at VCC = 5 V | ns |
| IOUT (DC Output Sink/Source Current) | ±50 mA | mA |
| ICC (DC Supply Current per Supply Pin) | ±100 mA | mA |
| TA (Operating Temperature Range) | −55 to +125 | °C |
| TSTG (Storage Temperature Range) | −65 to +150 | °C |
| Package Type | SC-88A (SOT-353) | |
| Lead Temperature (1 mm from Case for 10 Seconds) | 260 | °C |
Key Features
- Extremely high speed: tPD 2.6 ns (typical) at VCC = 5 V.
- Designed for 1.65 V to 5.5 V VCC operation.
- Overvoltage tolerant inputs and outputs up to 5.5 V.
- LVTTL compatible and LVCMOS compatible.
- 24 mA balanced output sink and source capability.
- Near zero static supply current substantially reduces system power requirements.
- 3-state OE input is active-low.
- Replacement for NC7SZ125.
- Pb-free packages available and RoHS compliant.
Applications
- Telecommunications equipment.
- High-performance workstations.
- PCs and networking servers.
- Portable consumer electronics.
Q & A
- What is the voltage range for the NL17SZ125DFT2G?
The NL17SZ125DFT2G operates within a voltage range of 1.65 V to 5.5 V.
- What is the typical propagation delay of the NL17SZ125DFT2G at VCC = 5 V?
The typical propagation delay is 2.6 ns at VCC = 5 V.
- Is the NL17SZ125DFT2G overvoltage tolerant?
Yes, the NL17SZ125DFT2G has overvoltage tolerant inputs and outputs up to 5.5 V.
- What are the compatible logic standards for the NL17SZ125DFT2G?
The device is LVTTL and LVCMOS compatible.
- What is the output current capability of the NL17SZ125DFT2G?
The device has a 24 mA balanced output sink and source capability.
- Does the NL17SZ125DFT2G support 3-state operation?
Yes, the device has a 3-state OE input that is active-low.
- Is the NL17SZ125DFT2G Pb-free and RoHS compliant?
Yes, the device is available in Pb-free packages and is RoHS compliant.
- What are the typical applications for the NL17SZ125DFT2G?
The device is used in telecommunications equipment, high-performance workstations, PCs and networking servers, and portable consumer electronics.
- What is the storage temperature range for the NL17SZ125DFT2G?
The storage temperature range is −65 to +150°C.
- What is the lead temperature for the NL17SZ125DFT2G during soldering?
The lead temperature should not exceed 260°C for 10 seconds.
