Overview

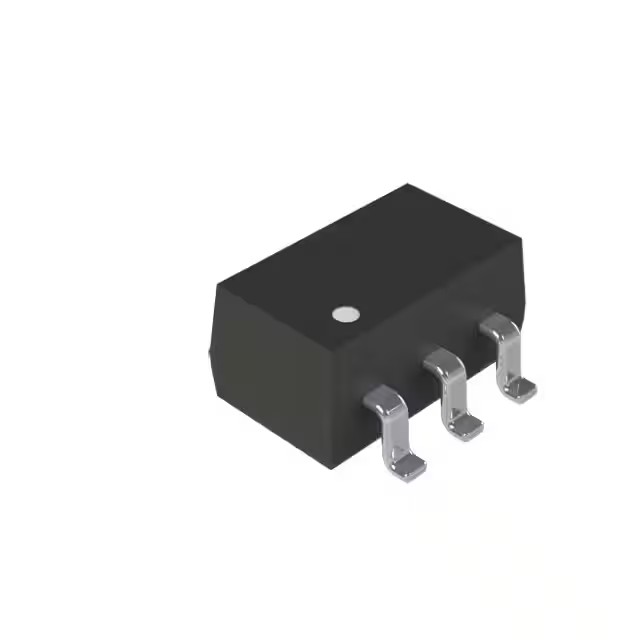

The NC7SZ157P6X-F40 is a single, high-performance, 2-to-1 CMOS non-inverting multiplexer from ON Semiconductor’s Ultra-High Speed series of TinyLogic®. Fabricated with advanced CMOS technology, this device achieves ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range of 1.65V to 5.5V. The inputs and outputs are high impedance when VCC is 0V, and inputs tolerate voltages up to 5.5V independent of the VCC operating range.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC (Supply Voltage) | -0.5 | - | 6.5 | V |
| VIN (DC Input Voltage) | -0.5 | - | 6.5 | V |
| VOUT (DC Output Voltage) | -0.5 | - | 6.5 | V |
| VCC Operating Range | 1.65 | - | 5.5 | V |
| tPLH, tPHL (Propagation Delay S to Z) | - | 2.4 | 4.1 | ns |
| IOUT (DC Output Current) | - | - | ±50 | mA |
| TSTG (Storage Temperature Range) | -65 | - | +150 | °C |
| TJ (Junction Temperature Under Bias) | - | - | +150 | °C |
Key Features
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Ultra High-Speed
- Power Down High-Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak™ Packages
- Space-Saving SC70 Package
- Pb-Free, Halogen Free/BFR Free and RoHS Compliant
Applications
The NC7SZ157P6X-F40 is suitable for a wide range of applications due to its high performance and versatility. It can be used in:
- High-speed data transmission systems
- Signal routing and switching circuits
- Low power consumption designs
- Embedded systems requiring compact packaging
- General logic circuits where high speed and low power are critical
Q & A
- What is the VCC operating range of the NC7SZ157P6X-F40?
The VCC operating range is from 1.65 V to 5.5 V.
- What is the propagation delay of the NC7SZ157P6X-F40?
The propagation delay (tPLH, tPHL) is typically around 2.4 ns to 4.1 ns.
- Does the NC7SZ157P6X-F40 support over-voltage tolerance?
- What types of packages are available for the NC7SZ157P6X-F40?
The device is available in SC-88, MicroPak, and MicroPak2 packages.
- Is the NC7SZ157P6X-F40 RoHS compliant?
- What is the maximum DC output current of the NC7SZ157P6X-F40?
The maximum DC output current is ±50 mA.
- What is the storage temperature range for the NC7SZ157P6X-F40?
The storage temperature range is from -65°C to +150°C.
- Does the NC7SZ157P6X-F40 have noise/EMI reduction features?
- What is the typical power dissipation of the NC7SZ157P6X-F40 in still air?
The power dissipation in still air is up to 332 mW for the SC-88 package and up to 812 mW for the MicroPak-6 package.
- Can the NC7SZ157P6X-F40 be used in high-speed data transmission systems?
