Overview
The NC7SZ02P5X_F40 is a single two-input NOR gate from onsemi's Ultra-High Speed (UHS) series of TinyLogic. Fabricated with advanced CMOS technology, this device achieves ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The NC7SZ02 operates within a VCC range of 1.65 V to 5.5 V and is designed for general usage in various applications.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VCC Supply Voltage | Operating | 1.65 | - | 5.5 | V |
| VIN Input Voltage | - | 0 | - | 5.5 | V |
| VOUT Output Voltage | - | 0 | - | VCC | V |
| TA Operating Temperature | - | -40 | - | 85 | °C |
| tPLH, tPHL Propagation Delay | CL = 50 pF, RL = 500 Ω at 5 V VCC | 1.9 | - | 4.1 | ns |
| IOH High Level Output Current | VCC = 3 V | -24 | - | - | mA |
| IOL Low Level Output Current | VCC = 3 V | 24 | - | - | mA |
| ICC Quiescent Supply Current | VIN = 5.5 V, GND | - | - | 20 | µA |
Key Features
- Ultra-High Speed: Propagation delay of 2.4 ns (typical) into 50 pF at 5 V VCC.
- High Output Drive: ±24 mA at 3 V VCC.
- Broad VCC Operating Range: 1.65 V to 5.5 V.
- Matches Performance of LCX Operated at 3.3 V VCC.
- Power Down High-Impedance Inputs/Outputs.
- Over-Voltage Tolerance Inputs: Facilitate 5 V to 3 V translation.
- Proprietary Noise/EMI Reduction Circuitry.
- Ultra-Small MicroPak™ Packages: Space-saving SOT23 and SC70 packages.
Applications
The NC7SZ02P5X_F40 is suitable for a wide range of applications due to its ultra-high speed, high output drive, and broad VCC operating range. It is particularly useful in:
- General logic circuits requiring high speed and low power consumption.
- Voltage translation between 5 V and 3 V systems.
- Applications requiring noise and EMI reduction.
- Space-constrained designs due to its ultra-small packages.
Q & A
- What is the operating voltage range of the NC7SZ02P5X_F40?
The operating voltage range is from 1.65 V to 5.5 V.
- What is the typical propagation delay of the NC7SZ02P5X_F40 at 5 V VCC?
The typical propagation delay is 2.4 ns into 50 pF at 5 V VCC.
- What is the maximum output current of the NC7SZ02P5X_F40?
The maximum output current is ±24 mA at 3 V VCC.

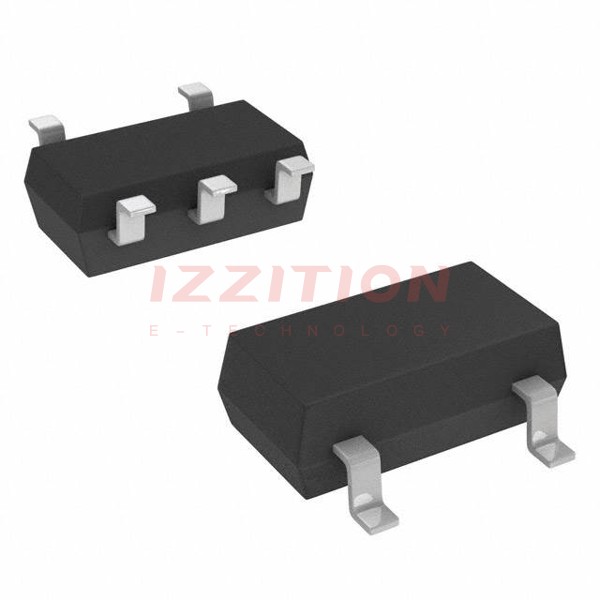

- What are the package options for the NC7SZ02P5X_F40?
The device is available in 5-TSSOP, SC-70-5, and SOT-353 packages.
- What is the operating temperature range of the NC7SZ02P5X_F40?
The operating temperature range is from -40°C to 85°C.
- Does the NC7SZ02P5X_F40 have over-voltage tolerance on its inputs?
Yes, the inputs tolerate voltages up to 5.5 V, independent of the VCC operating range.
- What is the quiescent supply current of the NC7SZ02P5X_F40?
The quiescent supply current is up to 20 µA.
- Is the NC7SZ02P5X_F40 suitable for voltage translation between 5 V and 3 V systems?
Yes, it facilitates 5 V to 3 V translation due to its over-voltage tolerance inputs.
- Does the NC7SZ02P5X_F40 have noise and EMI reduction features?
Yes, it includes proprietary noise/EMI reduction circuitry.
- What is the status of the NC7SZ02P5X_F40 part?
The part is listed as obsolete.
