Overview

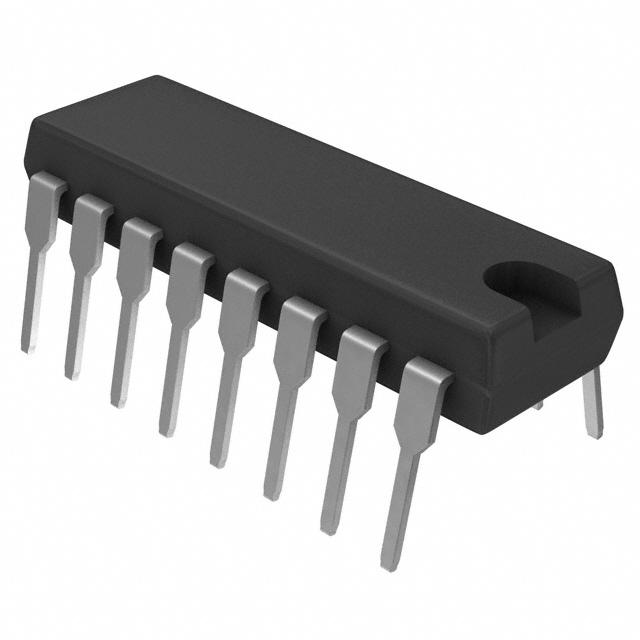

The MC14094B, produced by onsemi, is an integrated circuit that combines an 8-stage shift register with a data latch for each stage and features three-state outputs. This component is designed to handle serial data shifting and storage efficiently, making it suitable for various digital circuit applications. Data is shifted on the positive clock transition, and the QS output is optimized for high-speed cascaded systems, while the Q'S output is shifted on the following negative clock transition for low-speed systems. The device also includes input diode protection and is pin-for-pin compatible with the CD4094B.
Key Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| DC Supply Voltage Range | VDD | −0.5 to +18.0 | V |
| Input or Output Voltage Range | Vin, Vout | −0.5 to VDD + 0.5 | V |
| Input or Output Current | Iin, Iout | ±10 | mA |
| Power Dissipation, per Package | PD | 500 | mW |
| Ambient Temperature Range | TA | −55 to +125 | °C |
| Storage Temperature Range | Tstg | −65 to +150 | °C |
| Lead Temperature (8-Second Soldering) | TL | 260 | °C |
Key Features
- 3-State Outputs
- Capable of driving two low-power TTL loads or one low-power Schottky TTL load over the rated temperature range
- Input Diode Protection
- Data Latch for each stage of the shift register
- Dual Outputs for data out on both positive and negative clock transitions
- Useful for serial-to-parallel data conversion
- Pin-for-pin compatible with CD4094B
- NLV prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q100 qualified and PPAP capable
- Pb-Free and RoHS compliant
Applications
The MC14094B is versatile and can be used in a variety of applications, including:
- Serial-to-parallel data conversion
- High-speed and low-speed cascaded systems
- Automotive systems due to its AEC-Q100 qualification
- Digital circuit designs requiring shift registers and data latches
- Industrial and consumer electronics where reliable data shifting and storage are necessary
Q & A
- What is the primary function of the MC14094B?
The MC14094B combines an 8-stage shift register with a data latch for each stage and features three-state outputs, allowing for efficient serial data shifting and storage.
- How is data shifted in the MC14094B?
Data is shifted on the positive clock transition, and the QS output is shifted on the following negative clock transition.
- What are the key features of the MC14094B?
The key features include 3-state outputs, input diode protection, data latches, dual outputs, and compatibility with CD4094B.
- What are the typical applications of the MC14094B?
Typical applications include serial-to-parallel data conversion, high-speed and low-speed cascaded systems, and automotive systems.
- Is the MC14094B Pb-Free and RoHS compliant?
- What is the operating temperature range of the MC14094B?
The ambient temperature range is −55 to +125°C, and the storage temperature range is −65 to +150°C.
- How many low-power TTL loads can the MC14094B drive?
The MC14094B can drive two low-power TTL loads or one low-power Schottky TTL load over the rated temperature range.
- Is the MC14094B suitable for automotive applications?
- What is the significance of the NLV prefix in the MC14094B?
The NLV prefix indicates that the device meets unique site and control change requirements and is AEC-Q100 qualified and PPAP capable.
- How does the output enable function work in the MC14094B?
The outputs of the eight data latches are controlled by 3-state buffers, which are placed in the high-impedance state by a logic Low on the Output Enable input.
