Overview
The NXP UJA1167ATK/X/0Z is a mini high-speed CAN System Basis Chip (SBC) designed by NXP. This versatile IC integrates an ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant HS-CAN transceiver along with a 5 V/100 mA supply for a microcontroller. It features advanced functionalities such as Standby/Sleep modes, watchdog functionality, and a Serial Peripheral Interface (SPI). The compact HVSON-14 package makes it a space-efficient solution for various applications requiring reliable CAN communication, particularly in automotive and industrial systems. The chip is designed to operate in harsh environments and includes crucial protections like ESD protection and thermal management.
Key Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Manufacturer | NXP | Series | UJA1167ATK |
| Type | High Speed | Mounting Style | SMD/SMT |
| Number of Drivers | 1 Driver | Number of Receivers | 1 Receiver |
| Supply Voltage - Min | 3 V | Supply Voltage - Max | 28 V |
| Minimum Operating Temperature | -40°C | Maximum Operating Temperature | +150°C |
| Operating Supply Current | 46 mA | Packaging | Reel |
| Brand | NXP Semiconductors | Operating Supply Voltage | 3 V to 28 V |
| Product | CAN Transceivers | Factory Pack Quantity | 6000 |
Key Features
- High-speed CAN interface (CAN 2.0B) compliant with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5
- Standby/Sleep modes for low power consumption with bus and local wake-up capability
- Watchdog functionality with independent clock source and various operating modes (Window, Timeout, Autonomous)

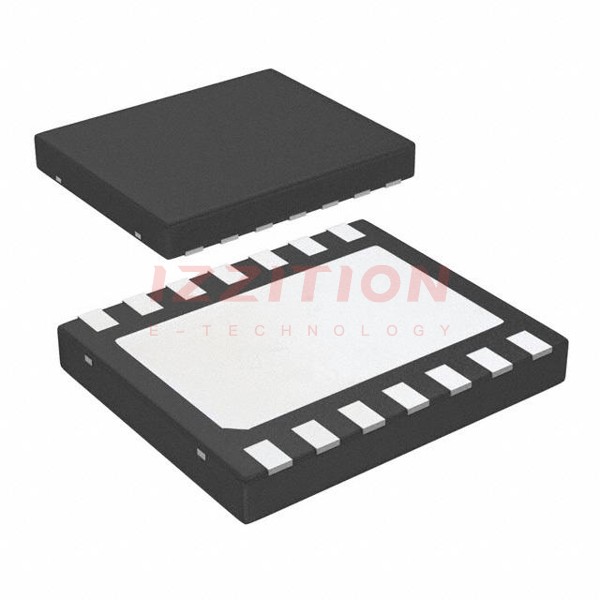

- Compact HVSON-14 package for space-efficient design
- Integrated 5 V/100 mA low-drop voltage regulator for microcontroller supply
- Serial Peripheral Interface (SPI) for control and diagnostics
- ESD protection up to 8 kV (HBM) and 6 kV (IEC TS 62228) on CAN bus pins and other critical pins
- Autonomous CAN biasing and support for CAN FD up to 5 Mbit/s
- Non-volatile memory for storing configuration settings
- Local and remote wake-up capabilities with wake-up source recognition
Applications
- Automotive systems: engine control units, body electronics, and infotainment systems
- Industrial systems: robotics, industrial automation, and process control systems
- Other applications requiring reliable CAN communication and low power consumption
Q & A
- Q: What is the UJA1167ATK/X/0Z and its primary function?
A: The UJA1167ATK/X/0Z is a mini high-speed CAN System Basis Chip (SBC) that integrates an HS-CAN transceiver and a 5 V/100 mA supply for a microcontroller, designed for reliable CAN communication in various applications.
- Q: What are the key features of the UJA1167ATK/X/0Z?
A: Key features include high-speed CAN interface, Standby/Sleep modes, watchdog functionality, SPI interface, and integrated voltage regulator. It also offers ESD protection and supports CAN FD up to 5 Mbit/s.
- Q: What are the operating temperature and voltage ranges for the UJA1167ATK/X/0Z?
A: The operating temperature range is -40°C to +150°C, and the supply voltage range is 3 V to 28 V.
- Q: How does the UJA1167ATK/X/0Z handle power management?
A: It features Standby and Sleep modes with very low supply current, and the microcontroller supply is switched off in Sleep mode. It also supports remote and local wake-up capabilities.
- Q: What kind of ESD protection does the UJA1167ATK/X/0Z offer?
A: The chip offers ESD protection up to 8 kV (HBM) and 6 kV (IEC TS 62228) on CAN bus pins and other critical pins.
- Q: How can I order the UJA1167ATK/X/0Z?
A: You can order the UJA1167ATK/X/0Z by selecting the 'Add to Cart' button on the product listing and proceeding to the checkout page to enter your payment and shipping information.
- Q: What is the warranty period for the UJA1167ATK/X/0Z?
A: The UJA1167ATK/X/0Z comes with a 1-year warranty that covers defects in materials and workmanship under normal use.
- Q: How can I find detailed information about the UJA1167ATK/X/0Z?
A: You can find detailed information, including application notes, factory information, and images, through the NXP information page or by using the search engine on the distributor's website.
- Q: Are the price and stock information for the UJA1167ATK/X/0Z accurate?
A: Inventory levels and pricing may fluctuate and are refreshed periodically. It is recommended to confirm with the sales or customer service team before finalizing the order.
- Q: What are the typical applications of the UJA1167ATK/X/0Z?
A: Typical applications include automotive systems (engine control units, body electronics, infotainment systems), industrial systems (robotics, industrial automation, process control), and other applications requiring reliable CAN communication.
