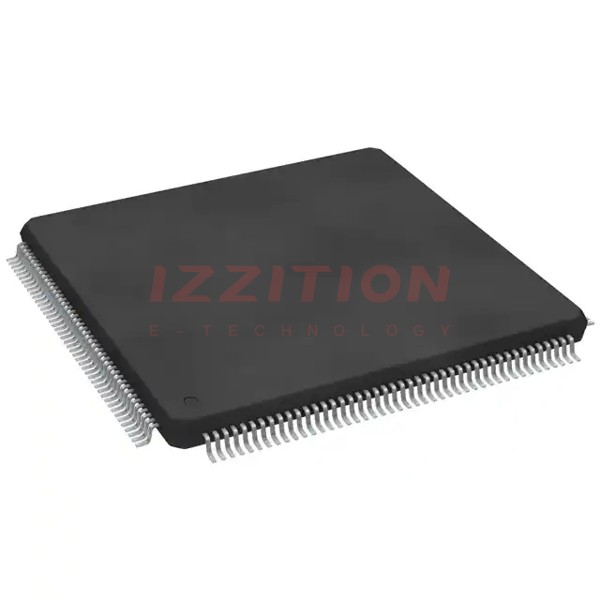

NXP USA Inc. SPC5634MF2MLU80

Manufacturer No:
SPC5634MF2MLU80
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
IC MCU 32BIT 1.5MB FLASH 176LQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The SPC5634MF2MLU80 is a 32-bit single-core microcontroller produced by NXP USA Inc., designed primarily for automotive and industrial applications. This microcontroller is part of the MPC56xx Qorivva series and is known for its robust operation and high reliability. It features the e200z3 core processor and operates at a speed of 80 MHz, making it suitable for demanding environments.

Key Specifications

AttributeValue
Package176-LQFP
SeriesMPC56xx Qorivva
Product StatusActive
Core Processore200z3
Core Size32-Bit Single-Core
Speed80 MHz
ConnectivityCANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART
PeripheralsDMA, POR, PWM, WDT
Number of I/O80
Program Memory Size1.5 MB (1.5M x 8)
Program Memory TypeFLASH
RAM Size94K x 8
Voltage - Supply (Vcc/Vdd)4.5V ~ 5.25V
Data ConvertersA/D 34x12b
Oscillator TypeInternal
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

Key Features

  • High integration with advanced peripherals for extensive control, including DMA, POR, PWM, and WDT.
  • Robust operating temperature range of -40°C to 125°C, making it suitable for extreme environments.
  • Efficient data management and signal conversion capabilities with A/D converters and internal oscillator.
  • Supports multiple communication protocols such as CANbus, EBI/EMI, LINbus, SCI, SPI, and UART/USART.
  • Comprehensive on-chip peripherals reduce the need for external components.
  • Enhanced features for error detection and system reliability, including configurable error-correcting codes (ECC) and single-bit error correction reporting.

Applications

  • Automotive systems: Suitable for various automotive applications due to its robustness and compliance with automotive communication protocols.
  • Industrial control systems: Ideal for industrial control and automation due to its high reliability and advanced peripherals.
  • Embedded systems: Can be used in a variety of embedded system applications requiring high performance and reliability.

Q & A

  1. What is the core processor of the SPC5634MF2MLU80 microcontroller?
    The core processor is the e200z3.
  2. What is the operating speed of the SPC5634MF2MLU80?
    The operating speed is 80 MHz.
  3. What type of memory does the SPC5634MF2MLU80 have?
    The SPC5634MF2MLU80 has 1.5 MB of FLASH program memory and 94K x 8 bytes of RAM.
  4. What are the key peripherals of the SPC5634MF2MLU80?
    The key peripherals include DMA, POR, PWM, and WDT.
  5. What communication protocols does the SPC5634MF2MLU80 support?
    The microcontroller supports CANbus, EBI/EMI, LINbus, SCI, SPI, and UART/USART.
  6. What is the operating temperature range of the SPC5634MF2MLU80?
    The operating temperature range is -40°C to 125°C.
  7. What is the package type of the SPC5634MF2MLU80?
    The package type is 176-LQFP.
  8. Is the SPC5634MF2MLU80 RoHS compliant?
    Yes, the SPC5634MF2MLU80 is RoHS compliant.
  9. What are the primary application areas of the SPC5634MF2MLU80?
    The primary application areas include automotive systems, industrial control systems, and embedded systems.
  10. What is the voltage supply range for the SPC5634MF2MLU80?
    The voltage supply range is 4.5V to 5.25V.

Product Attributes

Core Processor:e200z3
Core Size:32-Bit Single-Core
Speed:80MHz
Connectivity:CANbus, EBI/EMI, LINbus, SCI, SPI, UART/USART
Peripherals:DMA, POR, PWM, WDT
Number of I/O:80
Program Memory Size:1.5MB (1.5M x 8)
Program Memory Type:Flash
EEPROM Size:-
RAM Size:94K x 8
Voltage - Supply (Vcc/Vdd):4.5V ~ 5.25V
Data Converters:A/D 34x12b
Oscillator Type:Internal
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:176-LQFP
Supplier Device Package:176-LQFP (24x24)
0 Remaining View Similar
