Overview
The SPC5604CF2MLL6557 is a 32-bit microcontroller from NXP USA Inc., part of the MPC5604B/C family. It is designed for automotive and industrial applications, leveraging the Power Architecture® embedded category. This microcontroller features a single-issue, 32-bit CPU core complex (e200z0) with an instruction set enhancement allowing variable length encoding (VLE) for reduced code size footprint. The device is known for its robust set of peripherals and memory options, making it a versatile choice for various embedded systems.
Key Specifications
| Specification | Details |
|---|---|
| CPU Core | Single-issue, 32-bit CPU core complex (e200z0) |
| Instruction Set | Power Architecture® with VLE (Variable Length Encoding) |
| Operating Frequency | Up to 64 MHz |
| Code Flash Memory | Up to 512 KB with ECC |
| Data Flash Memory | 64 KB (4 × 16 KB) with ECC |
| SRAM | Up to 48 KB with ECC |
| Memory Protection Unit (MPU) | 8 region descriptors with 32-byte region granularity |
| Interrupt Controller (INTC) | 148 interrupt vectors, including 16 external interrupt sources and 18 external interrupt/wakeup sources |
| Analog-to-Digital Converter (ADC) | 10-bit, up to 36 channels |
| Serial Peripheral Interface (DSPI) | Up to 3 modules |
| Serial Communication Interface (LINFlex) | Up to 4 modules |
| CAN Modules | Up to 6 enhanced full CAN (FlexCAN) modules |
| I2C Module | 1 module |
| General Purpose Pins | Up to 123 configurable pins (package dependent) |

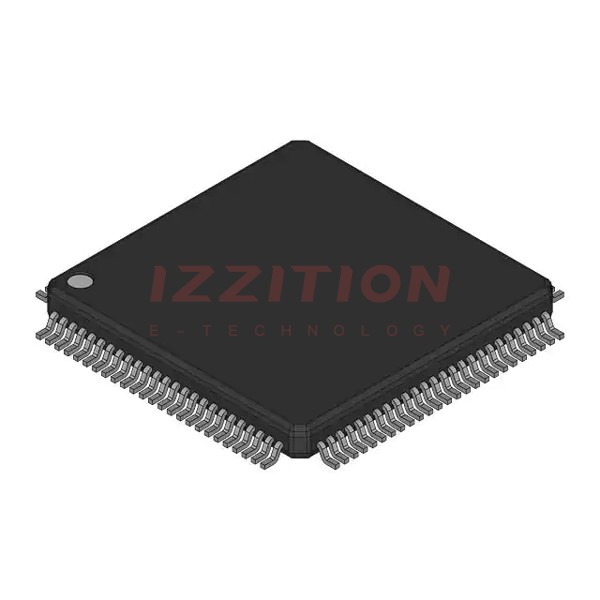

| Package Type | 100-LQFP, 14 x 14 x 1.4 mm body |
Key Features
- Single-issue, 32-bit CPU core complex (e200z0) compliant with the Power Architecture® embedded category.
- Instruction set enhancement with VLE for code size footprint reduction.
- Up to 512 KB on-chip code flash and 64 KB on-chip data flash memory, both with ECC.
- Up to 48 KB on-chip SRAM with ECC.
- Memory protection unit (MPU) with 8 region descriptors and 32-byte region granularity.
- Interrupt controller (INTC) with 148 interrupt vectors.
- Frequency modulated phase-locked loop (FMPLL).
- Crossbar switch architecture for concurrent access to peripherals, flash memory, or RAM.
- Boot assist module (BAM) for internal flash programming via a serial link (CAN or SCI).
- Timer with input/output channels providing 16-bit input capture, output compare, and pulse width modulation functions (eMIOS-lite).
- 10-bit analog-to-digital converter (ADC) with up to 36 channels.
- Up to 3 serial peripheral interface (DSPI) modules and up to 4 serial communication interface (LINFlex) modules.
- Up to 6 enhanced full CAN (FlexCAN) modules with configurable buffers.
- 1 inter IC communication interface (I2C) module.
- Real Time Counter (RTC) with clock source from 128 kHz.
Applications
The SPC5604CF2MLL6557 microcontroller is designed for use in various automotive and industrial applications, including:
- Automotive control systems such as engine control units, transmission control units, and body control modules.
- Industrial control systems, including motor control and automation.
- Safety-critical systems requiring robust and reliable performance.
- Embedded systems that require high performance, low power consumption, and a rich set of peripherals.
Q & A
- What is the CPU core of the SPC5604CF2MLL6557?
The CPU core is a single-issue, 32-bit CPU core complex (e200z0) compliant with the Power Architecture® embedded category. - What is the maximum operating frequency of the SPC5604CF2MLL6557?
The maximum operating frequency is up to 64 MHz. - How much code flash memory does the SPC5604CF2MLL6557 have?
The device has up to 512 KB of on-chip code flash memory with ECC. - What types of serial communication interfaces are available on the SPC5604CF2MLL6557?
The device features up to 3 DSPI modules, up to 4 LINFlex modules, and up to 6 FlexCAN modules. - Does the SPC5604CF2MLL6557 have an analog-to-digital converter (ADC)?
Yes, it has a 10-bit ADC with up to 36 channels. - What is the package type of the SPC5604CF2MLL6557?
The package type is 100-LQFP with a 14 x 14 x 1.4 mm body. - What is the purpose of the Boot Assist Module (BAM) in the SPC5604CF2MLL6557?
The BAM supports internal flash programming via a serial link (CAN or SCI). - Does the SPC5604CF2MLL6557 have a Real Time Counter (RTC)?
Yes, it has an RTC with a clock source from 128 kHz. - How many general purpose pins are available on the SPC5604CF2MLL6557?
Up to 123 configurable general purpose pins are available, depending on the package. - What are some typical applications of the SPC5604CF2MLL6557?
Typical applications include automotive control systems, industrial control systems, and safety-critical systems.
