Overview
The SPC5516EAVLQ66R is a 32-bit dual-core microcontroller from NXP USA Inc., part of the e200z0 and e200z1 families within the MPC55xx Qorivva series. This microcontroller is designed for high-performance automotive and industrial applications, offering a robust set of features and specifications that make it suitable for demanding environments.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller Type | 32-Bit Dual-Core |
| Maximum Clock Frequency | 66 MHz |
| Flash Memory Size | 1 MB (1M x 8) |
| Data RAM Size | 64 kB |
| Data Bus Width | 32 bit |
| ADC Resolution | 12 bit |

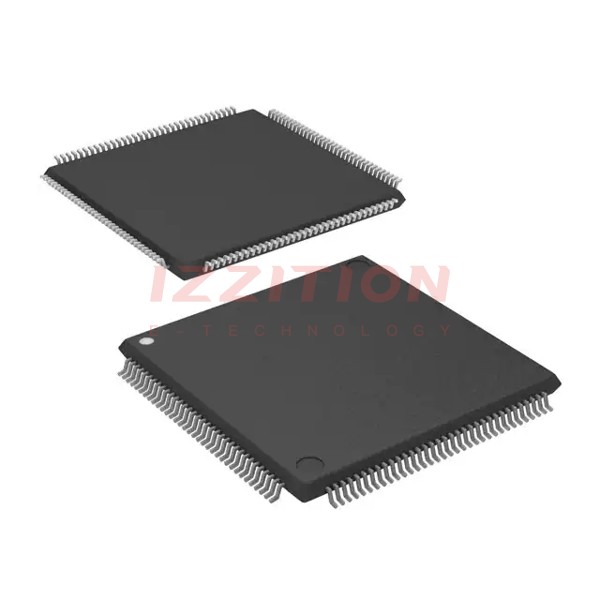

| Package Type | 144-LQFP (20x20) |
Key Features
- Dual-core architecture for enhanced performance and multitasking capabilities.
- High-speed processing with a maximum clock frequency of 66 MHz.
- 1 MB of flash memory and 64 kB of data RAM for extensive code and data storage.
- 12-bit ADC resolution for precise analog-to-digital conversion.
- 144-pin LQFP package, providing a compact and reliable form factor.
Applications
The SPC5516EAVLQ66R microcontroller is primarily designed for automotive and industrial applications, including:
- Automotive control systems such as engine control units, transmission control units, and body control modules.
- Industrial automation and control systems, including motor control and power management.
- Safety-critical systems requiring high reliability and performance.
Q & A
- What is the maximum clock frequency of the SPC5516EAVLQ66R microcontroller?
The maximum clock frequency is 66 MHz.
- How much flash memory does the SPC5516EAVLQ66R have?
The SPC5516EAVLQ66R has 1 MB of flash memory.
- What is the data bus width of the SPC5516EAVLQ66R?
The data bus width is 32 bits.
- What is the ADC resolution of the SPC5516EAVLQ66R?
The ADC resolution is 12 bits.
- In what package type is the SPC5516EAVLQ66R available?
The SPC5516EAVLQ66R is available in a 144-LQFP (20x20) package.
- What are the primary applications of the SPC5516EAVLQ66R?
The primary applications include automotive control systems and industrial automation.
- How much data RAM does the SPC5516EAVLQ66R have?
The SPC5516EAVLQ66R has 64 kB of data RAM.
- Is the SPC5516EAVLQ66R suitable for safety-critical systems?
- Which family does the SPC5516EAVLQ66R belong to?
The SPC5516EAVLQ66R belongs to the e200z0 and e200z1 families within the MPC55xx Qorivva series.
- Who is the manufacturer of the SPC5516EAVLQ66R?
The manufacturer is NXP USA Inc.
