Overview

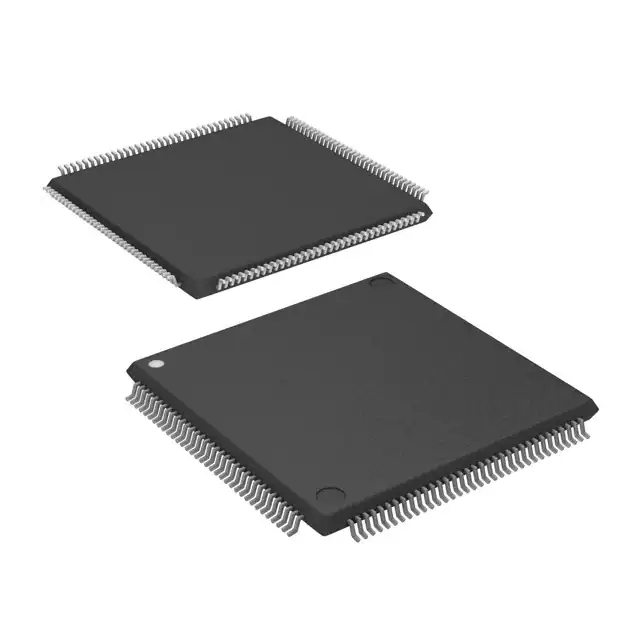

The SP5742PFK1AMLQ9R is a high-performance microcontroller from NXP USA Inc., part of the MPC57xx series. This 32-bit dual-core microcontroller is designed for demanding automotive and industrial applications. It features two e200Z4 cores operating at 200MHz, providing robust processing capabilities. The device is packaged in a 144-LQFP (20x20 mm) and is available in tape and reel packaging.
Key Specifications
| Specification | Value |
|---|---|
| Core Type | 2 x e200Z4 |
| Operating Frequency | 200MHz |
| Non-Volatile Memory (NVM) | 1.5MB (1.5M x 8) FLASH |
| SRAM | 192K |
| Analog-to-Digital Converters (ADC) | 4 x ADC |
| Pulse Width Modulators (PWM) | 2 x PWM |
| SENT Interfaces | 2 x SENT |
| Package Type | 144-LQFP (20x20 mm) |
Key Features
The SP5742PFK1AMLQ9R boasts several key features that make it suitable for high-performance applications:
- Dual-Core Processing: Two e200Z4 cores operating at 200MHz provide high computational power.
- Memory and Storage: 1.5MB of non-volatile memory and 192K of SRAM ensure ample storage and runtime memory.
- Analog and Digital Capabilities: Includes 4 ADCs, 2 PWMs, and 2 SENT interfaces for comprehensive analog and digital signal processing.
- Package and Reliability: Packaged in a 144-LQFP (20x20 mm) with a low profile, ensuring reliability and ease of integration.
Applications
The SP5742PFK1AMLQ9R is designed for use in various demanding applications, including:
- Automotive Systems: Suitable for advanced driver-assistance systems (ADAS), engine control units, and other automotive electronics.
- Industrial Control Systems: Ideal for industrial automation, motor control, and other high-performance industrial applications.
- Embedded Systems: Can be used in complex embedded systems requiring high processing power and advanced peripherals.
Q & A
- What is the core type of the SP5742PFK1AMLQ9R microcontroller?
The SP5742PFK1AMLQ9R features two e200Z4 cores.
- What is the operating frequency of the microcontroller?
The operating frequency is 200MHz.
- How much non-volatile memory does the SP5742PFK1AMLQ9R have?
The device has 1.5MB (1.5M x 8) of FLASH memory.
- What is the amount of SRAM available?
The microcontroller has 192K of SRAM.
- How many ADCs does the SP5742PFK1AMLQ9R have?
The device includes 4 ADCs.
- What package type is used for the SP5742PFK1AMLQ9R?
The microcontroller is packaged in a 144-LQFP (20x20 mm).
- What are some typical applications for the SP5742PFK1AMLQ9R?
Typical applications include automotive systems, industrial control systems, and complex embedded systems.
- Is the SP5742PFK1AMLQ9R available in tape and reel packaging?
- How many PWMs and SENT interfaces does the microcontroller have?
The device includes 2 PWMs and 2 SENT interfaces.
- Who is the manufacturer of the SP5742PFK1AMLQ9R?
The manufacturer is NXP USA Inc.
