Overview
The S9S12G96AMLF557 is a 16-bit microcontroller from NXP USA Inc., part of the HCS12 family. This microcontroller is designed to provide a robust and versatile solution for various embedded system applications. It features a comprehensive set of peripherals and a powerful 16-bit CPU, making it suitable for a wide range of industrial, automotive, and consumer electronics projects.
Key Specifications
| Specification | Value |
|---|---|

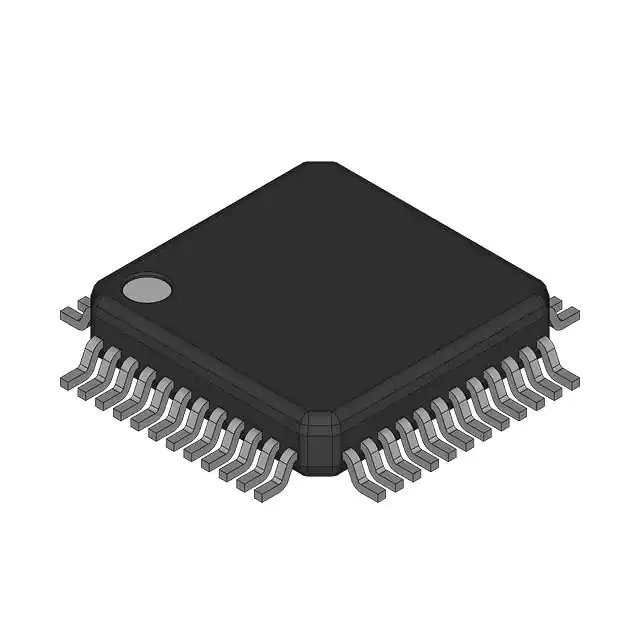

| Package | LQFP48: LQFP48, plastic, low profile quad flat package; 48 terminals; 0.5 mm pitch; 7 mm x 7 mm x 1.4 mm body |
| Flash Memory | 96 KByte |
| CPU Type | 16-bit HCS12 |
| Operating Voltage | 5V |
| Operating Temperature | -40°C to 125°C |
| Moisture Sensitivity Level | 3 / 168 hours |
| Peak Package Temperature | 260°C for 40 seconds |
| Compliance | EU RoHS Compliant, Lead Free, Halogen Free |
Key Features
- 16-bit HCS12 CPU with a wide range of peripherals including analog-to-digital converters, pulse-width modulators, and serial communication interfaces.
- 96 KByte of flash memory for program storage.
- Integrated clock, reset, and power management unit.
- Multiple timer modules and interrupt handling capabilities.
- Support for various communication protocols such as SPI and SCI.
- Compliant with EU RoHS, lead-free, and halogen-free standards.
Applications
The S9S12G96AMLF557 microcontroller is versatile and can be used in a variety of applications, including:
- Automotive systems: For engine control, safety systems, and infotainment.
- Industrial control systems: For motor control, automation, and monitoring.
- Consumer electronics: For appliances, gaming devices, and other electronic products.
- Medical devices: For diagnostic equipment and medical monitoring systems.
Q & A
- What is the package type of the S9S12G96AMLF557?
The package type is LQFP48, a plastic, low profile quad flat package with 48 terminals. - How much flash memory does the S9S12G96AMLF557 have?
The microcontroller has 96 KByte of flash memory. - What is the operating voltage of the S9S12G96AMLF557?
The operating voltage is 5V. - Is the S9S12G96AMLF557 compliant with EU RoHS and lead-free standards?
Yes, it is compliant with EU RoHS, lead-free, and halogen-free standards. - What are the key peripherals included in the S9S12G96AMLF557?
The microcontroller includes analog-to-digital converters, pulse-width modulators, serial communication interfaces, and timer modules. - What is the moisture sensitivity level of the S9S12G96AMLF557?
The moisture sensitivity level is 3 / 168 hours. - What is the peak package temperature for the S9S12G96AMLF557 during soldering?
The peak package temperature is 260°C for 40 seconds. - In which industries can the S9S12G96AMLF557 be applied?
The microcontroller can be applied in automotive, industrial, consumer electronics, and medical device industries. - Does the S9S12G96AMLF557 support serial communication protocols?
Yes, it supports protocols such as SPI and SCI. - What is the CPU type of the S9S12G96AMLF557?
The CPU type is a 16-bit HCS12.
