Overview
The S9S08LG32J0VLK is an 8-bit microcontroller from NXP Semiconductors, designed for industrial and automotive applications. This device features a robust set of peripherals and power-saving modes, making it suitable for a wide range of applications that require reliability and efficiency.
Key Specifications
| Specification | Details |
|---|---|
| CPU | 8-bit HCS08 Central Processor Unit (CPU), up to 40 MHz at 5.5 V to 2.7 V across temperature range of –40 °C to 85 °C and –40 °C to 105 °C |
| Flash Memory | 32 KB or 18 KB dual array flash |
| RAM | 1984 bytes |
| Supply Voltage | 2.7 V to 5.5 V |

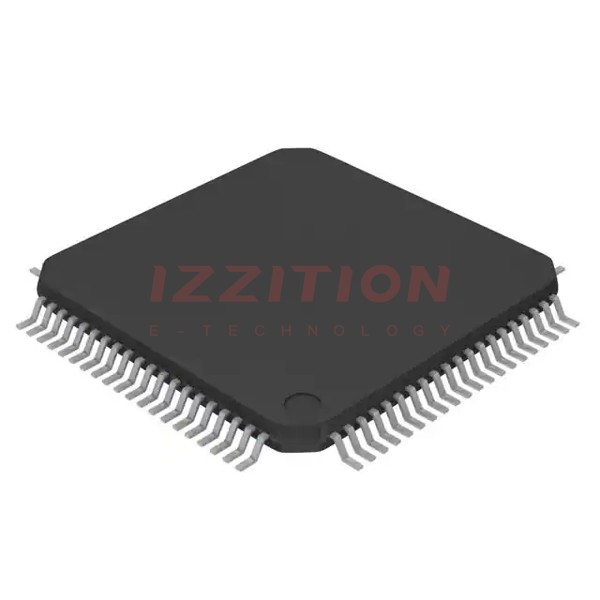

| Package Options | 48-pin LQFP, 64-pin LQFP, and 80-pin LQFP |
| ADC Channels | Up to 16 channels |
| Timers/Counters | Two timers: TPM1 (2 channels) and TPM2 (6 channels) |
| Interfaces | I2C, SCI, SPI |
| GPIOs | Up to 69 GPIOs depending on the package |
| Power-Saving Modes | Two low-power stop modes (stop2 and stop3), reduced-power wait mode, and peripheral clock gating |
Key Features
- 8-bit HCS08 Central Processor Unit (CPU) with up to 40 MHz clock speed
- On-chip memory including 32 KB or 18 KB flash and 1984 bytes of RAM
- Security circuitry to prevent unauthorized access to RAM and flash contents
- Power-saving modes including two low-power stop modes and reduced-power wait mode
- Peripheral clock gating to reduce currents
- Multiple timers and counters, including TPMx and MTIM
- Real-Time Clock (RTC) with binary or decimal based prescaler
- Keyboard Interrupt (KBI) module supporting 8 × 8 keyboard matrix
- Hysteresis and configurable pullup device on all input pins, configurable slew rate and drive strength on all output pins
Applications
The S9S08LG32J0VLK microcontroller is designed for industrial and automotive applications, where reliability, efficiency, and a robust set of peripherals are crucial. It is suitable for use in various systems such as industrial control, automotive electronics, and other embedded systems that require precise timing, low power consumption, and robust security features.
Q & A
- What is the CPU speed of the S9S08LG32J0VLK microcontroller?
The CPU speed of the S9S08LG32J0VLK microcontroller is up to 40 MHz at 5.5 V to 2.7 V across a temperature range of –40 °C to 85 °C and –40 °C to 105 °C. - How much flash and RAM memory does the S9S08LG32J0VLK have?
The S9S08LG32J0VLK has 32 KB or 18 KB of flash memory and 1984 bytes of RAM. - What are the package options for the S9S08LG32J0VLK?
The package options include 48-pin LQFP, 64-pin LQFP, and 80-pin LQFP. - What interfaces does the S9S08LG32J0VLK support?
The S9S08LG32J0VLK supports I2C, SCI, and SPI interfaces. - How many ADC channels does the S9S08LG32J0VLK have?
The S9S08LG32J0VLK has up to 16 ADC channels. - What power-saving modes are available on the S9S08LG32J0VLK?
The S9S08LG32J0VLK features two low-power stop modes (stop2 and stop3), reduced-power wait mode, and peripheral clock gating. - Does the S9S08LG32J0VLK have security features?
Yes, the S9S08LG32J0VLK includes security circuitry to prevent unauthorized access to RAM and flash contents. - What is the supply voltage range for the S9S08LG32J0VLK?
The supply voltage range for the S9S08LG32J0VLK is 2.7 V to 5.5 V. - Is the S9S08LG32J0VLK RoHS compliant?
Yes, the S9S08LG32J0VLK is RoHS compliant. - What are some typical applications for the S9S08LG32J0VLK?
The S9S08LG32J0VLK is typically used in industrial and automotive applications, including industrial control and automotive electronics.
