Overview
The S9S08DZ32F2VLCR528 is an 8-bit microcontroller from NXP USA Inc., part of the HCS08/S08 family. This microcontroller is designed to provide a robust and efficient solution for various embedded applications. It features a 40-MHz HCS08 CPU with a 20-MHz bus, making it suitable for a wide range of tasks. The device is known for its low power consumption and advanced peripherals, making it an ideal choice for applications requiring high performance and low energy usage.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | NXP USA Inc. |
| Microcontroller Type | 8-Bit, HCS08/S08 |
| Clock Speed | 40 MHz (20 MHz bus) |
| Flash Memory | 32 KB (32K x 8) |
| EEPROM | Up to 2 KB |
| RAM | Up to 4 KB |

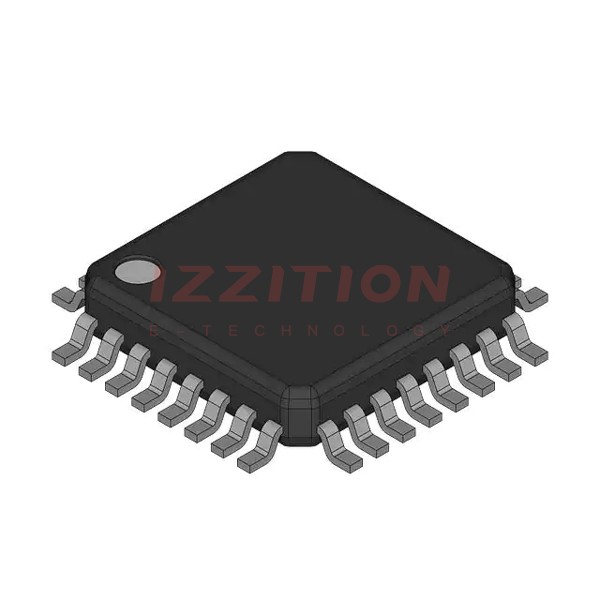

| Package Type | 32-LQFP (7x7 mm) |
| Clock Source Options | Oscillator (XOSC) — Loop-control Pierce oscillator; Crystal or ceramic resonator range of 31.25 kHz to 38.4 kHz or 1 MHz to 16 MHz |
| Power-Saving Modes | Two very low power stop modes, Reduced power wait mode, Very low power real time interrupt |
Key Features
- High-Performance CPU: 40-MHz HCS08 CPU with a 20-MHz bus.
- Advanced Memory: 32 KB of Flash memory, up to 2 KB of EEPROM, and up to 4 KB of RAM.
- Low Power Modes: Two very low power stop modes, reduced power wait mode, and very low power real-time interrupt.
- Clock Source Options: Supports crystal or ceramic resonators in various frequency ranges.
- Peripheral Support: Includes general-purpose I/O and peripheral ports, ADC, and other on-chip modules.
- Interrupt Handling: Supports up to 32 interrupt/reset sources.
Applications
- Industrial Control Systems: Suitable for controlling and monitoring industrial processes.
- Automotive Systems: Can be used in various automotive applications requiring low power and high reliability.
- Consumer Electronics: Ideal for use in consumer devices that require efficient and robust microcontrollers.
- Medical Devices: Used in medical equipment that demands low power consumption and high performance.
- IoT Devices: Suitable for Internet of Things (IoT) applications that require efficient processing and low energy usage.
Q & A
- What is the clock speed of the S9S08DZ32F2VLCR528 microcontroller?
The clock speed of the S9S08DZ32F2VLCR528 microcontroller is 40 MHz with a 20 MHz bus.
- How much Flash memory does the S9S08DZ32F2VLCR528 have?
The S9S08DZ32F2VLCR528 has 32 KB of Flash memory.
- What are the power-saving modes available in the S9S08DZ32F2VLCR528?
The device features two very low power stop modes, reduced power wait mode, and very low power real-time interrupt.
- What is the package type of the S9S08DZ32F2VLCR528?
The package type is 32-LQFP (7x7 mm).
- Does the S9S08DZ32F2VLCR528 support EEPROM?
Yes, it supports up to 2 KB of EEPROM.
- What are the clock source options for the S9S08DZ32F2VLCR528?
The device supports an oscillator (XOSC) with crystal or ceramic resonators in various frequency ranges.
- How much RAM does the S9S08DZ32F2VLCR528 have?
The device has up to 4 KB of RAM.
- What are some common applications of the S9S08DZ32F2VLCR528?
Common applications include industrial control systems, automotive systems, consumer electronics, medical devices, and IoT devices.
- Does the S9S08DZ32F2VLCR528 support interrupts?
Yes, it supports up to 32 interrupt/reset sources.
- Is the S9S08DZ32F2VLCR528 suitable for low-power applications?
Yes, it is designed with low power consumption in mind, making it suitable for low-power applications.
