Overview
The S912ZVFP64F1CLQ is a 16-bit microcontroller from NXP USA Inc., part of the S12ZV family. This microcontroller is specifically designed for automotive applications, featuring a robust set of capabilities tailored for instrument clusters, segment LCD displays, and communication interfaces. It is built around the HCS12Z CPU core and is qualified to the AEC-Q100 standard, ensuring reliability and performance in harsh automotive environments.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 16-bit S12Z CISC |
| Flash Memory | 64KB (64K x 8) |
| RAM Size | 4KB |
| Operating Frequency | 32MHz |
| Supply Voltage | 4.5V to 5.5V |
| Temperature Range | -40°C to +85°C |

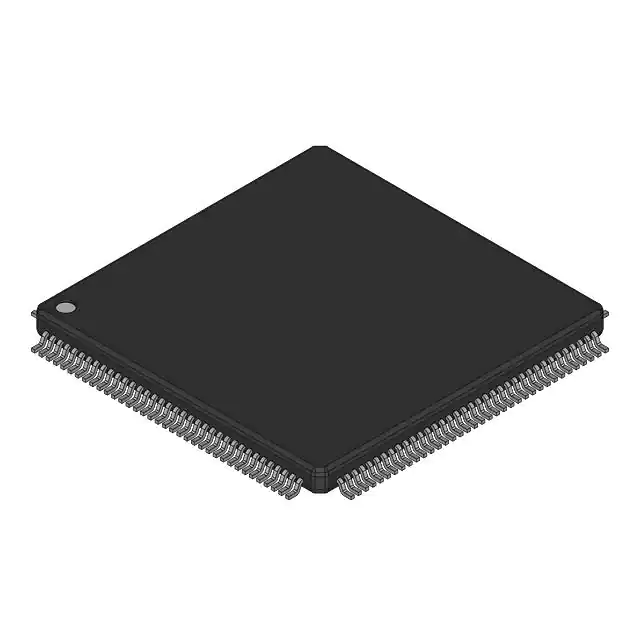

| Package Type | 144-pin LQFP (20x20 mm) |
| Communication Interfaces | CAN & LIN |
| Automotive Qualification | AEC-Q100 |
Key Features
- 16-bit S12Z CISC CPU Core: Provides efficient processing for automotive applications.
- 64KB Flash Memory: Sufficient memory for complex automotive control systems.
- CAN & LIN Interfaces: Supports both Controller Area Network (CAN) and Local Interconnect Network (LIN) for robust communication.
- Automotive Power Supply Regulator: On-chip regulator accepts +5V to +18Vdc input, ensuring stable power supply.
- Segment LCD Display Support: Designed for systems requiring segment LCD displays.
- AEC-Q100 Qualified: Meets the stringent automotive quality standards.
Applications
- Instrument Clusters: Ideal for controlling instrument clusters with stepper motor gauges and segment LCD displays.
- Automotive Control Systems: Suitable for various automotive control systems requiring robust communication and display capabilities.
- Automotive Infotainment Systems: Can be used in infotainment systems that require reliable and efficient processing.
Q & A
- What is the primary application of the S912ZVFP64F1CLQ microcontroller?
The primary application is in automotive instrument clusters and control systems, particularly those requiring segment LCD displays and robust communication interfaces.
- What is the operating frequency of the S912ZVFP64F1CLQ?
The operating frequency is 32MHz.
- What type of memory does the S912ZVFP64F1CLQ have?
The microcontroller has 64KB of Flash memory and 4KB of RAM.
- What communication interfaces does the S912ZVFP64F1CLQ support?
The microcontroller supports both CAN (Controller Area Network) and LIN (Local Interconnect Network) interfaces.
- What is the temperature range of the S912ZVFP64F1CLQ?
The temperature range is -40°C to +85°C.
- Is the S912ZVFP64F1CLQ qualified for automotive use?
Yes, it is qualified to the AEC-Q100 standard.
- What is the package type of the S912ZVFP64F1CLQ?
The package type is a 144-pin LQFP (20x20 mm).
- What is the supply voltage range for the S912ZVFP64F1CLQ?
The supply voltage range is 4.5V to 5.5V.
- Does the S912ZVFP64F1CLQ have an on-chip power supply regulator?
Yes, it has an on-chip automotive power supply regulator that accepts +5V to +18Vdc input.
- What are some common applications of the S12ZV family of microcontrollers?
Common applications include instrument clusters, automotive control systems, and infotainment systems.
