Overview
The S912XDP512J1MALR528 microcontroller, produced by NXP USA Inc., is part of the MC9S12XD family. This 16-bit microcontroller is designed for automotive multiplexing and mid-range body applications, offering 32-bit performance with a focus on reliability and efficiency. It features the HCS12X core and is equipped with 512 KB of flash memory, making it suitable for a variety of automotive and industrial applications.
Key Specifications
| Specification | Value |
|---|---|
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Program Memory Type | FLASH |
| Program Memory Size | 512 KB (512K x 8) |
| RAM Size | 32K x 8 |
| EEPROM Size | 4K x 8 |
| Speed | 80 MHz |
| Voltage - Supply (Vcc/Vdd) | 2.35 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of I/O | 91 |

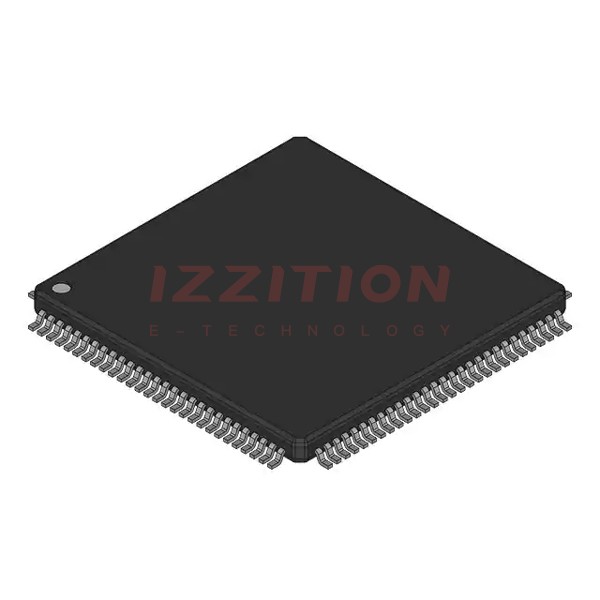

| Package / Case | 112-LQFP (20x20) |
| Peripherals | LVD, POR, PWM, WDT |
| Connectivity | CANbus, I²C, SCI, SPI |
| Data Converters | A/D 8x10b, 16x10b |
| Oscillator Type | External |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Key Features
- High Performance: The S912XDP512J1MALR528 offers 32-bit performance with a 16-bit HCS12X core, making it efficient for demanding applications.
- Memory and Storage: Equipped with 512 KB of flash memory, 32 KB of RAM, and 4 KB of EEPROM.
- Peripheral Support: Includes Low Voltage Detector (LVD), Power-On Reset (POR), Pulse Width Modulator (PWM), and Watchdog Timer (WDT).
- Communication Interfaces: Supports CANbus, I²C, SCI, and SPI for versatile communication needs.
- Analog to Digital Conversion: Features 8x10-bit and 16x10-bit A/D converters.
- Operating Conditions: Operates within a temperature range of -40°C to 85°C and a voltage supply range of 2.35 V to 5.5 V.
Applications
The S912XDP512J1MALR528 microcontroller is targeted for automotive multiplexing and mid-range body applications. It is also suitable for various industrial and IoT applications that require robust performance, reliability, and a range of peripheral functionalities.
Q & A
- What is the core processor of the S912XDP512J1MALR528 microcontroller?
The core processor is the HCS12X. - How much flash memory does the S912XDP512J1MALR528 have?
The microcontroller has 512 KB of flash memory. - What is the operating temperature range of the S912XDP512J1MALR528?
The operating temperature range is -40°C to 85°C. - What communication interfaces does the S912XDP512J1MALR528 support?
The microcontroller supports CANbus, I²C, SCI, and SPI. - How many I/O pins does the S912XDP512J1MALR528 have?
The microcontroller has 91 I/O pins. - What is the package type of the S912XDP512J1MALR528?
The package type is 112-LQFP (20x20). - Does the S912XDP512J1MALR528 have any analog to digital conversion capabilities?
Yes, it features 8x10-bit and 16x10-bit A/D converters. - What are the key peripherals included in the S912XDP512J1MALR528?
The key peripherals include LVD, POR, PWM, and WDT. - What is the maximum speed of the S912XDP512J1MALR528 microcontroller?
The maximum speed is 80 MHz. - Is the S912XDP512J1MALR528 RoHS compliant?
Yes, it is RoHS compliant.
