Overview

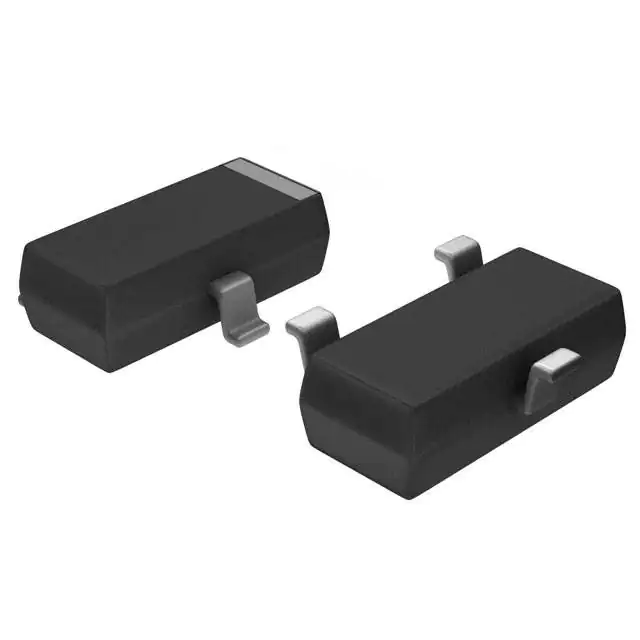

The PZM13NB2A,115 is a single Zener diode produced by NXP USA Inc. This component is designed to provide voltage regulation and is part of NXP's extensive range of discrete semiconductor products. The PZM13NB2A,115 is known for its reliability and precision in various electronic circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Package/Case | SC-59 |
| Voltage - Zener (Nom) (Vz) | 13 V |
| Tolerance | ±2% |
| Power - Max | 220 mW |
| Impedance (Max) (Zzt) | 10 Ohms |
| Product Status | Obsolete |
| RoHS Status | Lead free / RoHS Compliant |
Key Features
- Voltage regulation: The PZM13NB2A,115 provides stable voltage regulation with a nominal Zener voltage of 13 V and a tolerance of ±2%.
- Low power consumption: The diode has a maximum power rating of 220 mW.
- Compact packaging: It is packaged in an SC-59 case, making it suitable for space-constrained applications.
- RoHS compliance: The component is lead-free and RoHS compliant, ensuring environmental sustainability.
Applications
The PZM13NB2A,115 is used in various electronic circuits that require voltage regulation, such as power supplies, voltage references, and signal processing circuits. It is particularly useful in applications where a stable voltage is necessary to ensure the proper functioning of the circuit.
Q & A
- What is the nominal Zener voltage of the PZM13NB2A,115? The nominal Zener voltage is 13 V.
- What is the tolerance of the Zener voltage? The tolerance is ±2%.
- What is the maximum power rating of the PZM13NB2A,115? The maximum power rating is 220 mW.
- What is the package type of the PZM13NB2A,115? The package type is SC-59.
- Is the PZM13NB2A,115 RoHS compliant? Yes, it is lead-free and RoHS compliant.
- What is the impedance (Zzt) of the PZM13NB2A,115? The impedance (Zzt) is 10 Ohms.
- What is the current status of the PZM13NB2A,115? The product is obsolete.
- Where can the PZM13NB2A,115 be used? It can be used in power supplies, voltage references, and signal processing circuits.
- Why is the PZM13NB2A,115 useful in electronic circuits? It provides stable voltage regulation, which is essential for the proper functioning of many electronic circuits.
- Is the PZM13NB2A,115 suitable for space-constrained applications? Yes, due to its compact SC-59 packaging.
