Overview

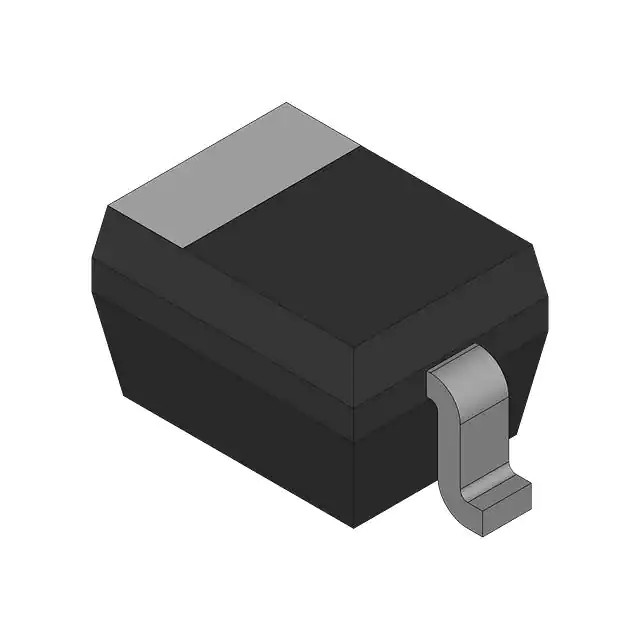

The PDZ5.6B/ZL115, produced by NXP USA Inc. (now part of Nexperia), is a low-power general purpose voltage regulator diode. It is housed in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package, making it ideal for space-constrained applications. This diode is designed to provide stable voltage regulation and is suitable for various electronic circuits requiring overvoltage protection, general regulation, and voltage reference functions.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | PDZ5.6B |
| Orderable Part Number | PDZ5.6B,115 |
| Package | SOD323 (SC-76) |
| Total Power Dissipation | Max. 400 mW |
| Zener Voltage | 5.6 V |
| Voltage Range | 2.4 V to 36 V (for similar Zener diodes in the series) |
Key Features
- Low-power consumption, suitable for energy-efficient designs.
- Small SOD323 (SC-76) SMD package, ideal for compact electronic designs.
- Stable voltage regulation.
- Suitable for overvoltage protection, general regulation, and voltage reference functions.
- Compliant with RoHS standards.
Applications
The PDZ5.6B/ZL115 is versatile and can be used in a variety of applications, including:
- Overvoltage protection circuits to safeguard electronic components from voltage spikes.
- General voltage regulation in power supplies and other electronic circuits.
- Voltage reference functions in analog and digital circuits.
- Automotive, industrial, and consumer electronics where stable voltage regulation is critical.
Q & A
- What is the primary function of the PDZ5.6B/ZL115 diode?
The primary function is to provide stable voltage regulation and overvoltage protection. - In what package is the PDZ5.6B/ZL115 diode available?
The diode is available in a SOD323 (SC-76) SMD plastic package. - What is the maximum total power dissipation of the PDZ5.6B/ZL115 diode?
The maximum total power dissipation is 400 mW. - What is the Zener voltage of the PDZ5.6B/ZL115 diode?
The Zener voltage is 5.6 V. - Is the PDZ5.6B/ZL115 diode RoHS compliant?
Yes, the diode is RoHS compliant. - In which types of applications is the PDZ5.6B/ZL115 commonly used?
It is commonly used in overvoltage protection, general voltage regulation, and voltage reference functions in various electronic circuits. - Who is the manufacturer of the PDZ5.6B/ZL115 diode?
The manufacturer is NXP USA Inc. (now part of Nexperia). - What is the voltage range for similar Zener diodes in the series?
The voltage range for similar Zener diodes is from 2.4 V to 36 V. - Why is the SOD323 package beneficial?
The SOD323 package is beneficial due to its small size, making it ideal for space-constrained designs. - Can the PDZ5.6B/ZL115 be used in automotive applications?
Yes, it can be used in automotive applications where stable voltage regulation is critical.
