Overview

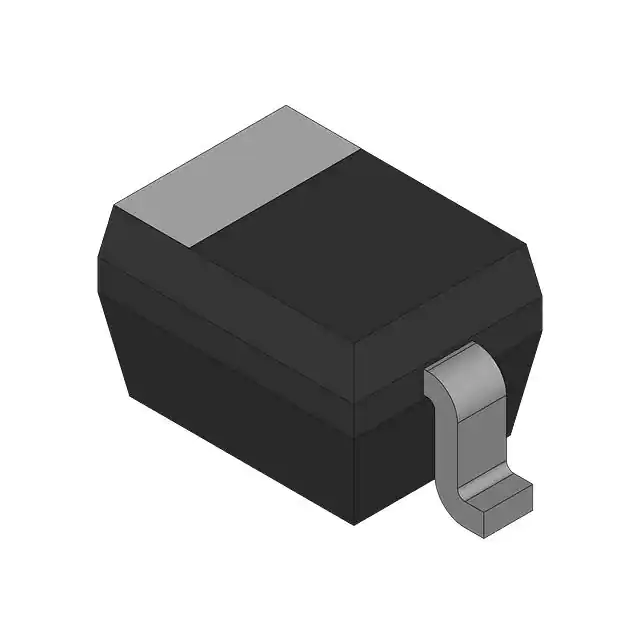

The PDZ5.1B,115 is a low-power general purpose voltage regulator diode manufactured by Nexperia. This component is part of the PDZ-B series and is designed for surface mount applications. It is housed in a small plastic SMD SOD323 (SC-76) package, making it suitable for compact electronic designs.
Key Specifications
| Attribute | Value |
|---|---|
| Power Dissipation | 400 mW |
| Forward (Drive) Current | 200 mA |
| Forward Voltage | 1.1 V |
| Reverse Current - Max | 2 µA |
| Working Voltage - Nominal | 5.1 V |
| Package Style | SOD-323 |
| Mounting Method | Surface Mount |
| Tolerance | ±2% |
Key Features
- Total power dissipation: max. 400 mW
- Small plastic package suitable for surface mounted design
- Wide variety of voltage ranges: nominal 2.4 to 36 V (E24 range)
- Tolerance approximately ±2%
- Lead free / RoHS Compliant
Applications
The PDZ5.1B,115 is primarily used for general voltage regulation and voltage stabilization in various electronic circuits.
Q & A
- What is the nominal working voltage of the PDZ5.1B,115?
The nominal working voltage is 5.1 V.
- What is the maximum power dissipation of the PDZ5.1B,115?
The maximum power dissipation is 400 mW.
- What is the package style of the PDZ5.1B,115?
The package style is SOD-323.
- Is the PDZ5.1B,115 RoHS compliant?
- What is the forward voltage of the PDZ5.1B,115?
The forward voltage is 1.1 V.
- What is the maximum reverse current of the PDZ5.1B,115?
The maximum reverse current is 2 µA.
- What is the tolerance of the PDZ5.1B,115?
The tolerance is approximately ±2%.
- What are the typical applications of the PDZ5.1B,115?
The typical applications include general voltage regulation and voltage stabilization.
- How many units are typically packaged in a reel?
Typically, 3000 units are packaged in a reel.
- What is the ECCN code for the PDZ5.1B,115?
The ECCN code is EAR99.
