Overview

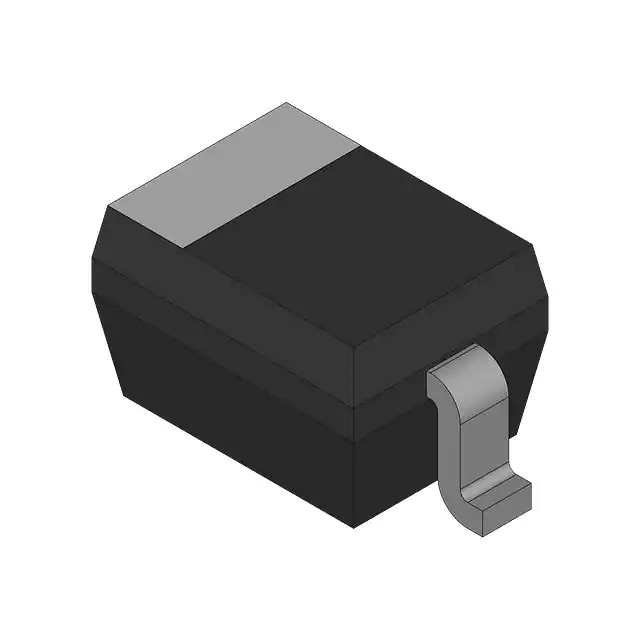

The PDZ27B/ZL115 is a low-power general-purpose voltage regulator diode produced by NXP USA Inc. This component is designed to operate in a very small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package, making it ideal for applications where space is limited. The PDZ27B/ZL115 is part of Nexperia's (formerly NXP Semiconductors) range of single Zener diodes, known for their reliability and performance in voltage regulation tasks.
Key Specifications
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Package | SOD323 (SC-76) |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| Impedance (Max) (Zzt) | 40 Ohms |
Key Features
- Low-power general-purpose voltage regulator diode
- Small SOD323 (SC-76) SMD plastic package
- High reliability and performance in voltage regulation tasks
- Low impedance (max 40 Ohms)
- Suitable for space-constrained applications
Applications
The PDZ27B/ZL115 is versatile and can be used in a variety of applications, including but not limited to:
- Voltage regulation and stabilization in electronic circuits
- Overvoltage protection
- Signal clipping and clamping
- Audio and video signal processing
- Automotive and industrial control systems
Q & A
- What is the package type of the PDZ27B/ZL115?
The PDZ27B/ZL115 comes in a SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. - What is the maximum impedance of the PDZ27B/ZL115?
The maximum impedance (Zzt) of the PDZ27B/ZL115 is 40 Ohms. - Is the PDZ27B/ZL115 RoHS compliant?
The PDZ27B/ZL115 is not applicable for RoHS compliance. - What is the moisture sensitivity level (MSL) of the PDZ27B/ZL115?
The moisture sensitivity level (MSL) of the PDZ27B/ZL115 is 1 (Unlimited). - What are the typical applications of the PDZ27B/ZL115?
The PDZ27B/ZL115 is typically used in voltage regulation, overvoltage protection, signal clipping, and various industrial and automotive applications. - Who is the manufacturer of the PDZ27B/ZL115?
The PDZ27B/ZL115 is manufactured by NXP USA Inc.. - What is the ECCN classification of the PDZ27B/ZL115?
The ECCN classification of the PDZ27B/ZL115 is EAR99. - Can the PDZ27B/ZL115 be used in high-temperature environments?
While specific temperature ratings are not provided here, it is generally advisable to consult the datasheet for detailed temperature specifications and limitations. - How can I purchase the PDZ27B/ZL115?
The PDZ27B/ZL115 can be purchased from various distributors and online retailers, including those listed on the Nexperia website. - What is the REACH status of the PDZ27B/ZL115?
The REACH status of the PDZ27B/ZL115 is vendor undefined.
